| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Grooved |
| Pressure Rating | 365PSI |
| Body Material | Ductile Iron |
| Working Temperature | -10 - 120°C |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Approvals | FM |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

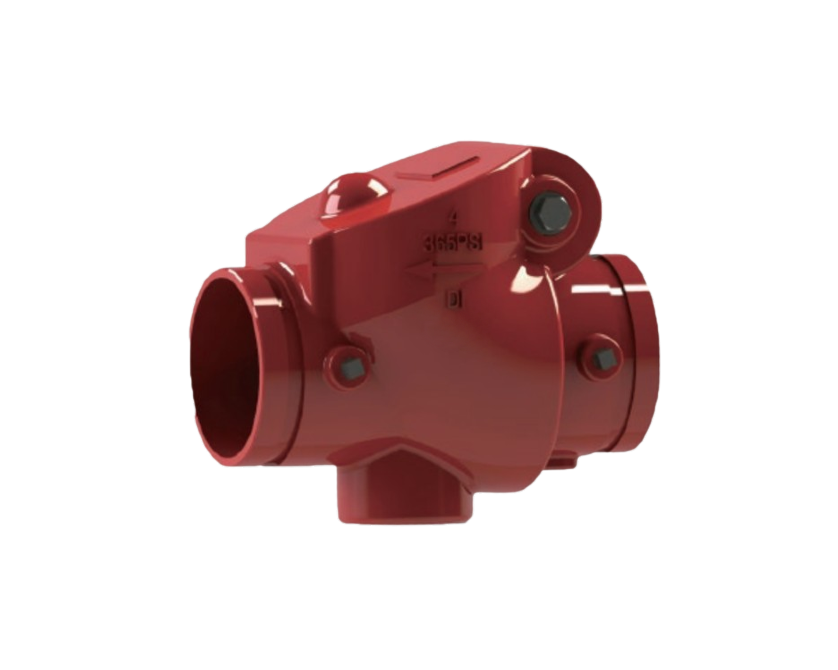

NSC-GP grooved swing check valve with a plug, a ductile iron body, bronze seat and EPDM-sealed clapper for fire protection water systems. Available in DN50-DN300 at a catalogued 365 PSI, with grooved ends for matching pipe couplings.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
NSC-GP grooved swing check valve with a plug, a ductile iron body, bronze seat and EPDM-sealed clapper for fire protection water systems. Available in DN50-DN300 at a catalogued 365 PSI, with grooved ends for matching pipe couplings.
FM Certificate of Compliance: FM 1210. Approval identification PR468420, granted 1 March 2024.
| Component | Material | Specification |
|---|---|---|
| Body | Ductile iron | ASTM A536 65-45-12 |
| Seat | Bronze | ASTM B62 C83600 |
| Clapper | Q235 + SS304 + EPDM | As listed in the range sheet |
| Clapper arm | Stainless steel | ASTM A351 CF8 |
| Washer, nut and split pin | Stainless steel | AISI 304 |
Range-sheet material options require confirmation for the selected valve construction. View the source drawing and table.
| Size | Size (inch) | L (mm) | Pipe OD (mm) |
|---|---|---|---|
| DN50 | 2 | 169 | 60.3 |
| DN65 | 2 1/2 | 203 | 76.1 |
| DN80 | 3 | 213 | 88.9 |
| DN100 | 4 | 245 | 114.3 |
| DN125 | 5 | 267 | 139.7 |
| DN150 | 6 | 292 | 168.3 |
| DN200 | 8 | 356 | 219.1 |
| DN250 | 10 | 432 | 273 |
| DN300 | 12 | 495 | 323.8 |
Dimension symbols match the drawing in the linked datasheet. Values are specific to this connection and model. View the source drawing and table.
Supervised isolation, check valves and sprinkler heads. Match the component to the system specification.
Explore application guidanceDefine flow rate, installation orientation and allowable pressure loss. Include reverse-flow conditions and the required closing behaviour.
Specify the system pressure, installation position and connection. Confirm the supervision arrangement where applicable and the product approvals required by the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
