| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Grooved |
| Pressure Rating | 300PSI |
| Body Material | Ductile Iron |
| Disc Material | EPDM Encapsulated Ductile Iron |
| Max. Working Pressure | 20,7 bar |
| Working Temperature | -10 - 120°C |
| Position | Normally Open · Normally Closed |
| Size | DN50 / Ø60,3mm · DN65 / Ø76,1mm · DN80 / Ø88,9mm · DN100 / Ø114,9mm · DN125 / Ø139,7mm · DN150 / Ø168,3mm · DN200 / Ø219,1mm · DN250 / Ø273,0mm · DN300 / Ø323,9 mm |
| Approvals | FM |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

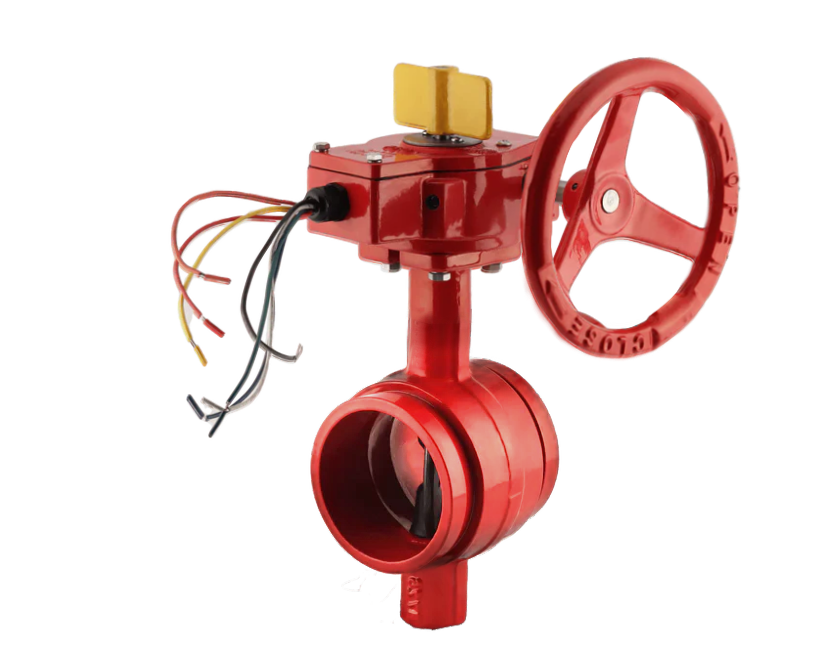

This butterfly valve is designed specifically for fire sprinkler systems, providing precise flow control and easy operation. Constructed from high-quality, durable materials, it is built to withstand the demands of high-pressure environments. The valve features an integrated tamper switch, ensuring system security by signaling any unauthorized adjustments.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
