| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | 365PSI |
| Body Material | Ductile Iron |
| Working Temperature | -10 - 120°C |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Approvals | FM |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

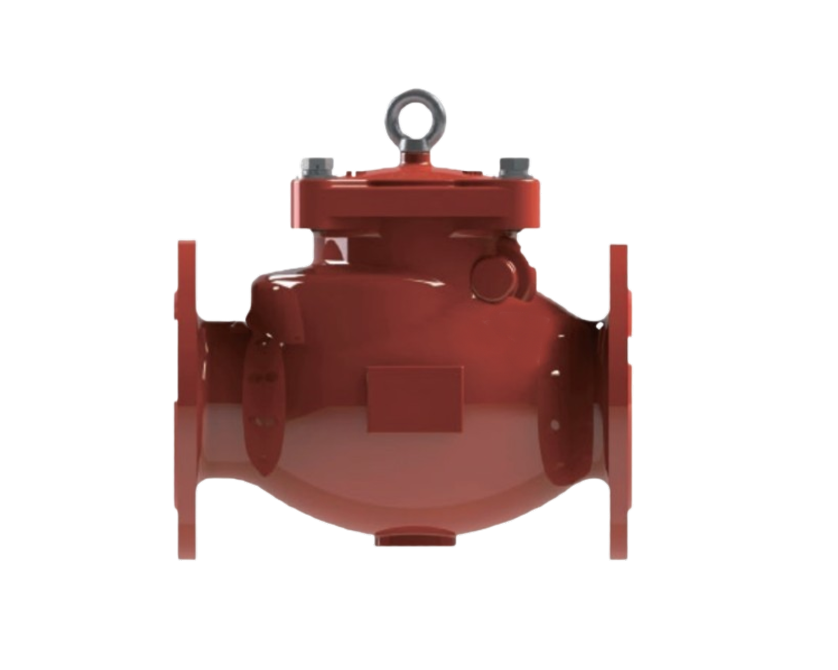

Flanged NSC-F swing check valve with a ductile iron body and EPDM disc seal for preventing reverse flow in fire protection water systems. The DN50-DN300 range is catalogued at 365 PSI; match flange drilling and face-to-face length to the installation.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
Flanged NSC-F swing check valve with a ductile iron body and EPDM disc seal for preventing reverse flow in fire protection water systems. The DN50-DN300 range is catalogued at 365 PSI; match flange drilling and face-to-face length to the installation.
FM Certificate of Compliance: FM 1210. Approval identification PR468420, granted 1 March 2024.
| Component | Material | Specification |
|---|---|---|
| Body, cover, clapper and clapper arm | Ductile iron | ASTM A536 65-45-12 |
| Disc seal | EPDM | - |
| Hinge pin | Stainless steel | AISI 304 |
| Seat | Bronze or stainless steel | ASTM B62 or AISI 304 |
Range-sheet material options require confirmation for the selected valve construction. View the source drawing and table.
| Size | Size (inch) | L (mm) | H (mm) |
|---|---|---|---|
| DN50 | 2 | 203 | 122 |
| DN65 | 2 1/2 | 254 | 133 |
| DN80 | 3 | 279 | 136.5 |
| DN100 | 4 | 330 | 219.5 |
| DN125 | 5 | 356 | 296 |
| DN150 | 6 | 406 | 298.5 |
| DN200 | 8 | 495 | 357 |
| DN250 | 10 | 559 | 410 |
| DN300 | 12 | 660 | 463 |
Dimension symbols match the drawing in the linked datasheet. Values are specific to this connection and model. View the source drawing and table.
