| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Wafer |
| Pressure Rating | 300PSI |
| Body Material | Ductile Iron |
| Working Temperature | -10 - 120°C |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Approvals | FM |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

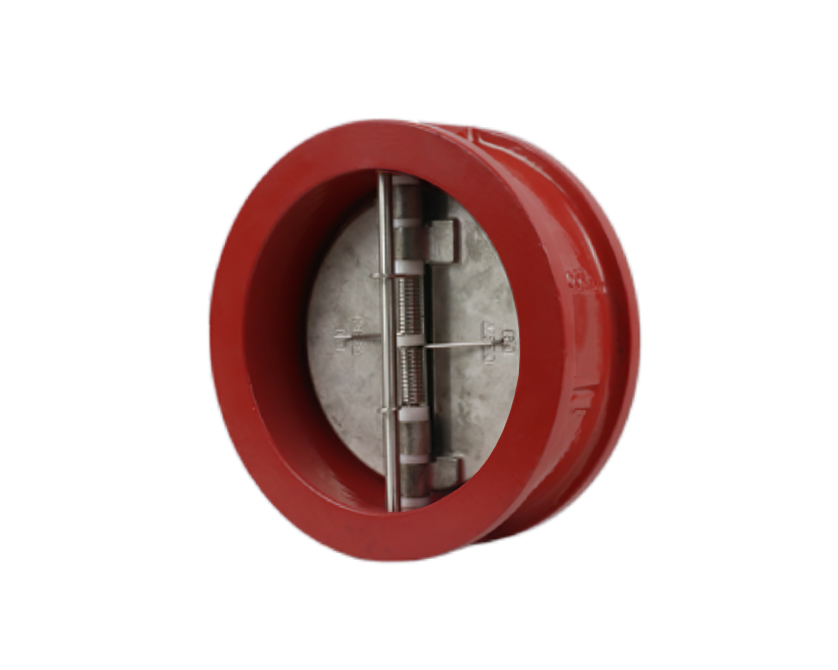

NSC-W dual-disc wafer check valve for preventing reverse flow in fire protection water systems. The catalogue configuration has a ductile iron body, DN50-DN300 sizes and a 300 PSI rating; the supplied datasheet identifies API 594 design and ANSI Class 125/150 mating flanges.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
NSC-W dual-disc wafer check valve for preventing reverse flow in fire protection water systems. The catalogue configuration has a ductile iron body, DN50-DN300 sizes and a 300 PSI rating; the supplied datasheet identifies API 594 design and ANSI Class 125/150 mating flanges.
FM Certificate of Compliance: FM 1230. Approval identification PR468420, granted 1 March 2024.
| Component | Material | Specification |
|---|---|---|
| Body (catalogue configuration) | Ductile iron | ASTM A536 65-45-12 |
| Disc options in the range sheet | Ductile iron / aluminium bronze / stainless steel | ASTM A536 / B584 C95400 / A351 CF8 / A351 CF8M |
| Stem | Stainless steel | AISI 316 |
| Seat-ring options in the range sheet | EPDM / NBR | - |
| Spring options in the range sheet | Stainless steel | AISI 316 / AISI 304 |
Range-sheet material options require confirmation for the selected valve construction. View the source drawing and table.
| Size | Size (inch) | H (mm) |
|---|---|---|
| DN50 | 2 | 54 |
| DN65 | 2 1/2 | 60 |
| DN80 | 3 | 67 |
| DN100 | 4 | 67 |
| DN125 | 5 | 83 |
| DN150 | 6 | 95 |
| DN200 | 8 | 127 |
| DN250 | 10 | 140 |
| DN300 | 12 | 181 |
Dimension symbols match the drawing in the linked datasheet. Values are specific to this connection and model. View the source drawing and table.
