| Model Reference | 1901 |
|---|---|
| Available Sizes | DN15-25 |
| Requested Size | DN15 · DN20 · DN25 |
| Pressure Rating | PN10 |
| Body Material | Stainless Steel SS304 |
| Connection Type | Threaded |
| Working Temperature | 0°C to 100°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
| Internal Materials | Copper seat; rubber seals; plastic floating ball |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

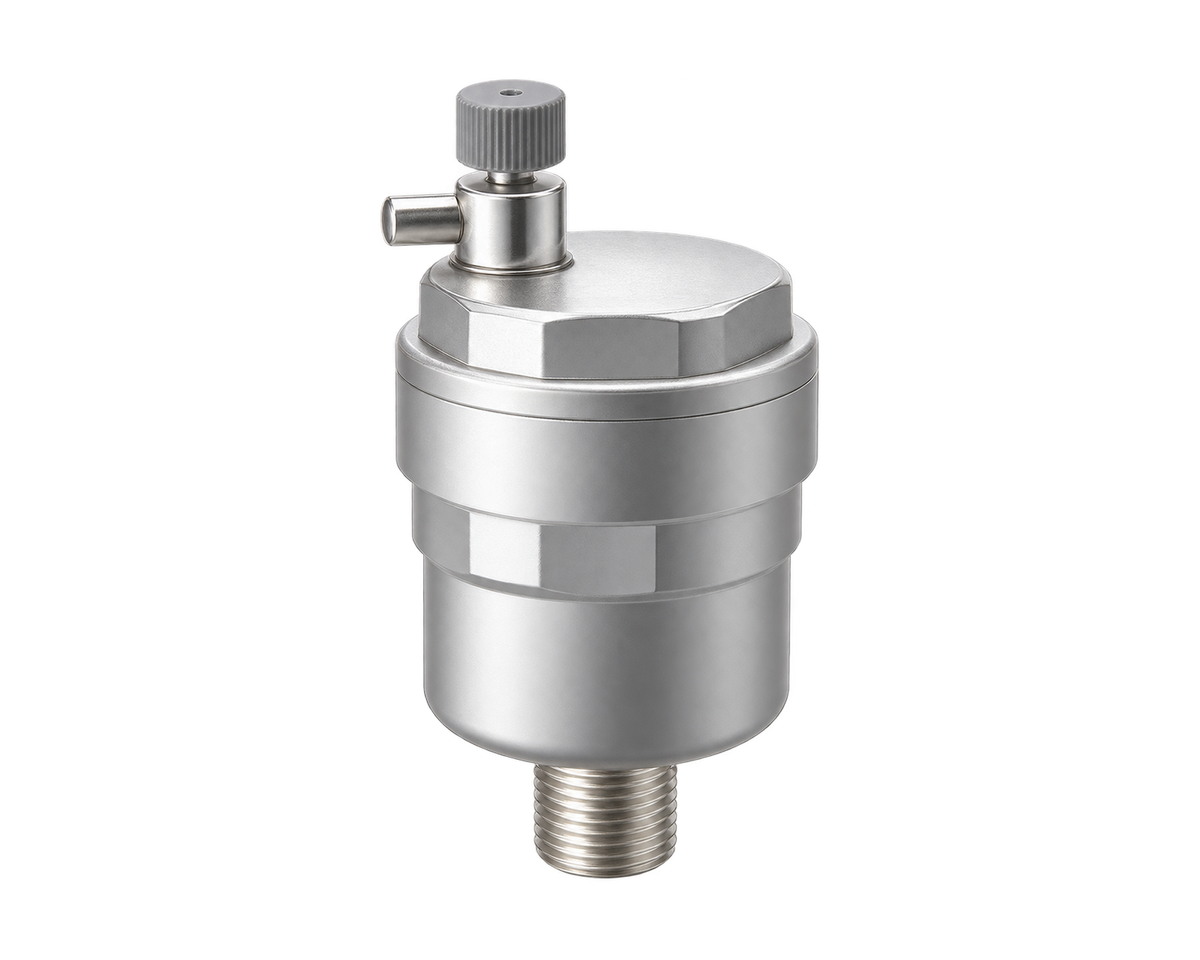

Automatic air release for facility-water cooling circuits. The stainless body also contains a copper seat and non-metallic internal parts; review all wetted materials.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Automatic air release for facility-water cooling circuits. The stainless body also contains a copper seat and non-metallic internal parts; review all wetted materials.
| DN | INCH | PT A" | H / mm | L / mm | Weight / kg |
|---|---|---|---|---|---|
| 15 | ½" | ½" | 112 | 59 | 0.6 |
| 20 | ¾" | ¾" | 112 | 59 | 0.6 |
| 25 | 1" | 1" | 125 | 59 | 0.7 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | SS304 |
| 2 | Bonnet | Stainless Steel | SS304 |
| 3 | Sealing Gasket | Rubber | -- |
| 4 | Seat | Copper | -- |
| 5 | O-Ring | Rubber | -- |
| 6 | Spring Support | Stainless Steel | SS304 |
| 7 | Outlet Pipe | -- | -- |
| 8 | Handle | -- | -- |
| 9 | Sealing Gasket Seat | Copper | -- |
| 10 | Float | Plastic | -- |
| 11 | Spring | Stainless Steel | SS304 |
| 12 | Lever | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
