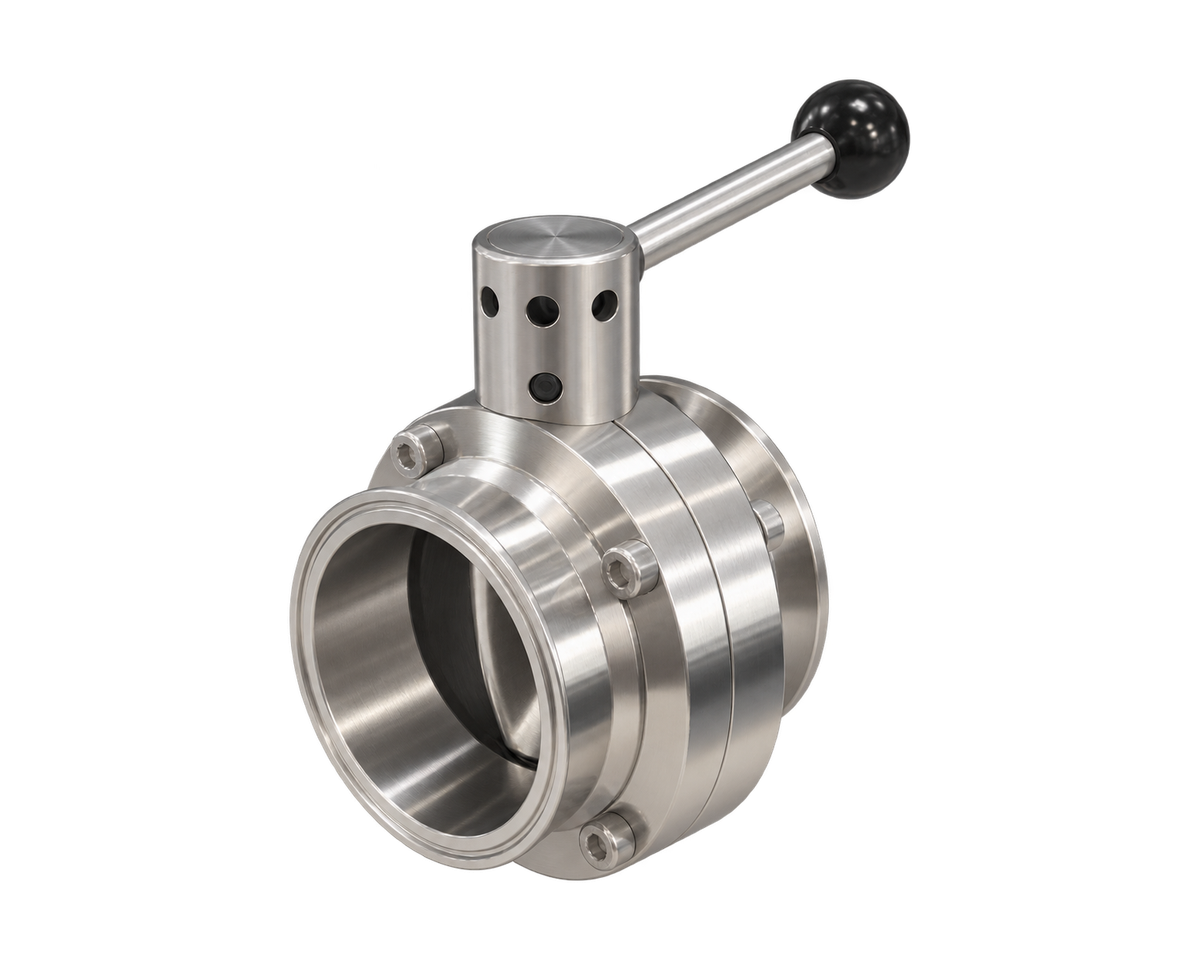

| Model Reference | 2412K |
|---|---|
| Available Sizes | Tube OD 51-203 mm |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel SS304 |
| Connection Type | Clamp (ISO 2852) |
| Working Temperature | -10°C to 100°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
| Requested Tube OD | 51 mm · 57 mm · 63 mm · 76 mm · 89 mm · 102 mm · 108 mm · 114 mm · 133 mm · 152 mm · 159 mm · 203 mm |
| Sealing Ring Material | EPDM · PTFE |
Catalogue options. Operating limits depend on the selected size, materials and configuration.
Compact clamp-connected isolation for stainless cooling assemblies. Select by the actual tube outside diameter and clamp interface.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Compact clamp-connected isolation for stainless cooling assemblies. Select by the actual tube outside diameter and clamp interface.
| SIZE | φA / mm | φB / mm | C / mm | D / mm | E / mm | F / mm | L / mm |
|---|---|---|---|---|---|---|---|
| φ51 | φ48 | φ64 | 127 | 79 | 20 | 100 | 74 |
| φ57 | φ53 | φ78 | 127 | 83 | 20 | 106 | 76 |
| φ63 | φ60 | φ78 | 137 | 89 | 22 | 115 | 76 |
| φ76 | φ72 | φ91 | 137 | 93 | 22 | 127 | 78 |
| φ89 | φ85 | φ106 | 160 | 99 | 22 | 140 | 78 |
| φ102 | φ98 | φ119 | 160 | 107 | 22 | 156 | 85 |
| φ108 | φ104 | φ119 | 160 | 107 | 22 | 156 | 85 |
| φ114 | φ110 | φ130 | 160 | 112 | 22 | 159 | 90 |
| φ133 | φ129 | φ145 | 210 | 128 | 26 | 186 | 122 |
| φ152 | φ147 | φ167 | 210 | 146 | 26 | 215 | 132 |
| φ159 | φ153 | φ183 | 210 | 146 | 26 | 215 | 132 |
| φ203 | φ198 | φ218 | 295 | 193 | 32 | 285 | 134 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Disc | Stainless Steel | SS304 |
| 2 | Body | Stainless Steel | SS304 |
| 3 | Sealing Ring | EPDM/PTFE | -- |
| 4 | Bolt | Stainless Steel | SS304 |
| 5 | Nut | Stainless Steel | SS304 |
| 6 | Handle | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
