Disc, seat & operation
Review disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.

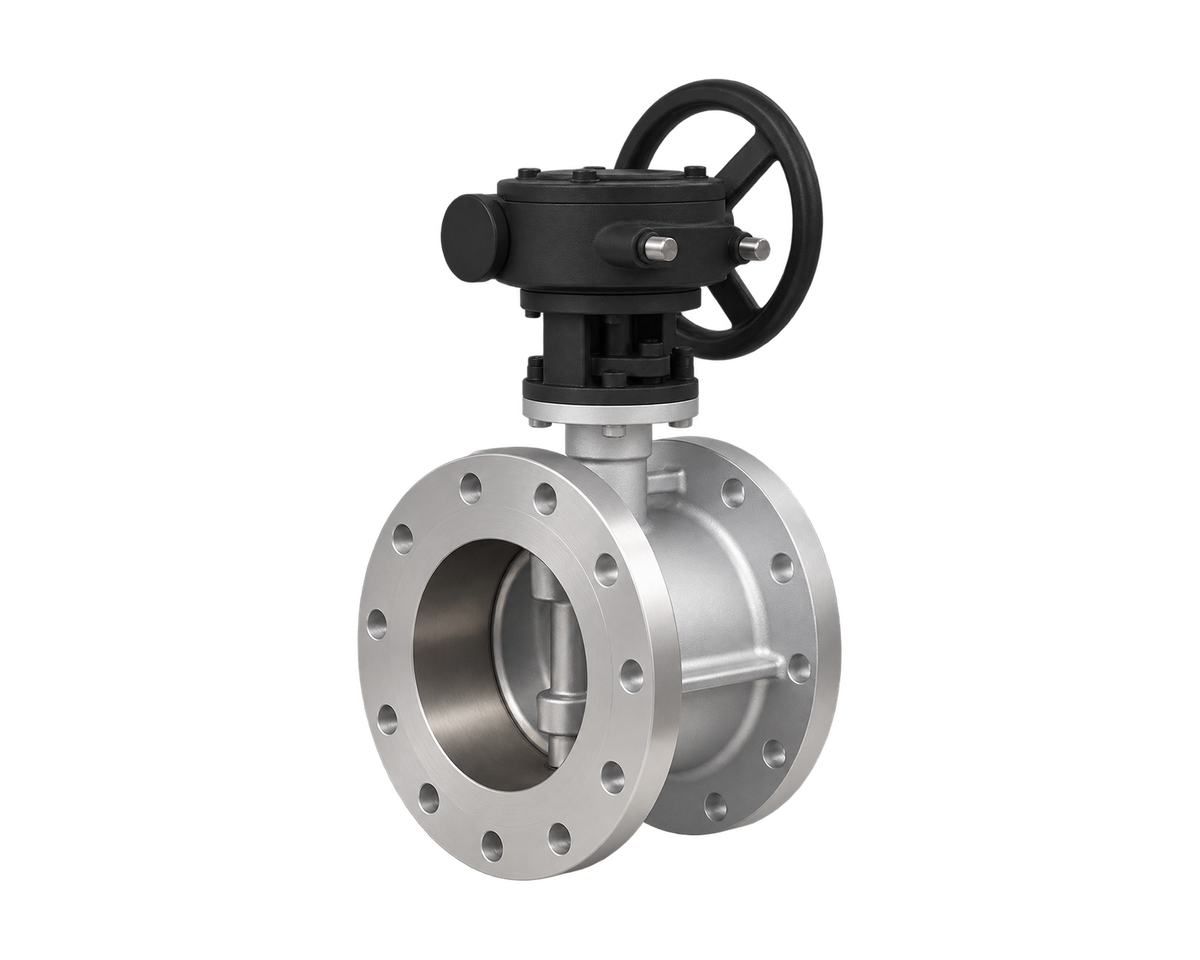

| Model Reference | 2113 |
|---|---|
| Available Sizes | DN50-600 |
| Requested Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 · DN500 · DN600 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Flanged |
| Working Temperature | -10°C to 100°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
| Operation | Lever · Gear Box |
Catalogue options. Operating limits depend on the selected size, materials and configuration.
Flanged isolation for stainless cooling-water pipework. Confirm the face-to-face length, actuator arrangement and pipe clearance.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Flanged isolation for stainless cooling-water pipework. Confirm the face-to-face length, actuator arrangement and pipe clearance.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8 |
| 2 | Stem | Stainless Steel | SS410 |
| 3 | Disc | Stainless Steel | CF8 |
| 4 | Pin | Stainless Steel | SS304 |
| 5 | Seat | EPDM | -- |
| 6 | Bushing | Macromolecule | -- |
| 7 | O-Ring | EPDM | -- |
| 8 | Lever/Gear Box | -- | -- |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
| DN | INCH | A mm | B / mm | L / mm | φD / mm | φD1 / mm | n-φd |
|---|---|---|---|---|---|---|---|
| 50 | 2" | 130 | 80 | 108 | φ160 | φ125 | 4-φ18 |
| 65 | 2½" | 140 | 90 | 112 | φ180 | φ145 | 4-φ18 |
| 80 | 3" | 157 | 88 | 114 | φ195 | φ160 | 8-φ18 |
| 100 | 4" | 165 | 108 | 127 | φ215 | φ180 | 8-φ18 |
| 125 | 5" | 180 | 123 | 140 | φ245 | φ210 | 8-φ18 |
| 150 | 6" | 200 | 140 | 140 | φ280 | φ240 | 8-φ22 |
| 200 | 8" | 212 | 178 | 152 | φ335 | φ295 | 12-φ22 |
| 250 | 10" | 280 | 198 | 165 | φ405 | φ355 | 12-φ26 |
| 300 | 12" | 310 | 230 | 178 | φ460 | φ410 | 12-φ26 |
| 350 | 14" | 325 | 260 | 190 | φ520 | φ470 | 16-φ26 |
| 400 | 16" | 370 | 290 | 216 | φ580 | φ525 | 16-φ30 |
| 450 | 18" | 392 | 330 | 222 | φ640 | φ585 | 20-φ30 |
| 500 | 20" | 421 | 290 | 229 | φ715 | φ650 | 20-φ33 |
| 600 | 24" | 505 | 435 | 267 | φ840 | φ770 | 20-φ36 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
Isolation, balancing, control valves, strainers and flexible connections for facility-water and CDU cooling circuits.
Explore application guidanceReview disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
State facility-water or CDU / technology-cooling duty, coolant formulation, flow, temperature and pressure. Confirm wetted materials and the exact valve configuration for the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
