Steam isolation
Isolation valves are selected around steam pressure, temperature and required shut-off duty.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
Steam isolation and condensate removal belong to the same process. Explore bellows-sealed valves, strainers, check valves and steam traps with pressure, temperature and condensate duty at the centre of your selection.
Isolation valves are selected around steam pressure, temperature and required shut-off duty.

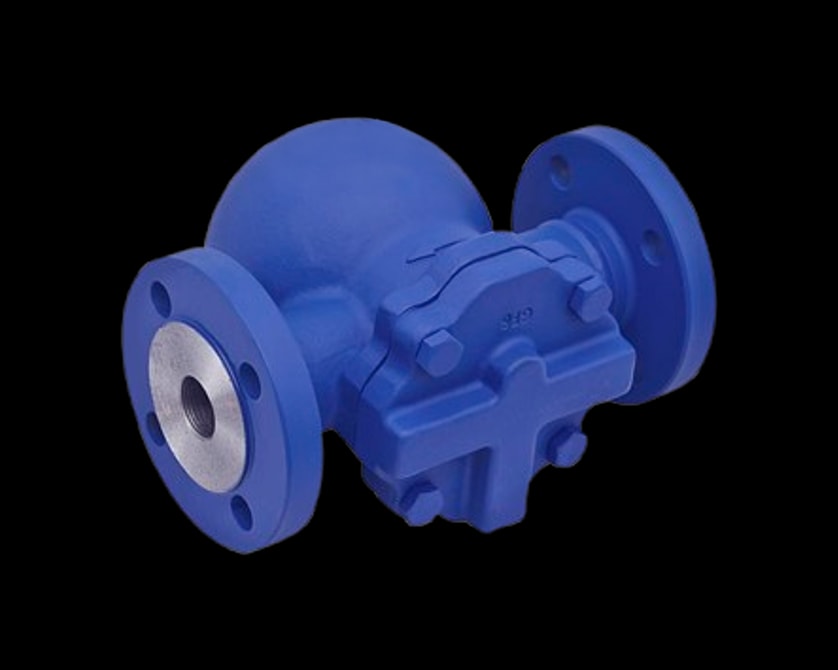

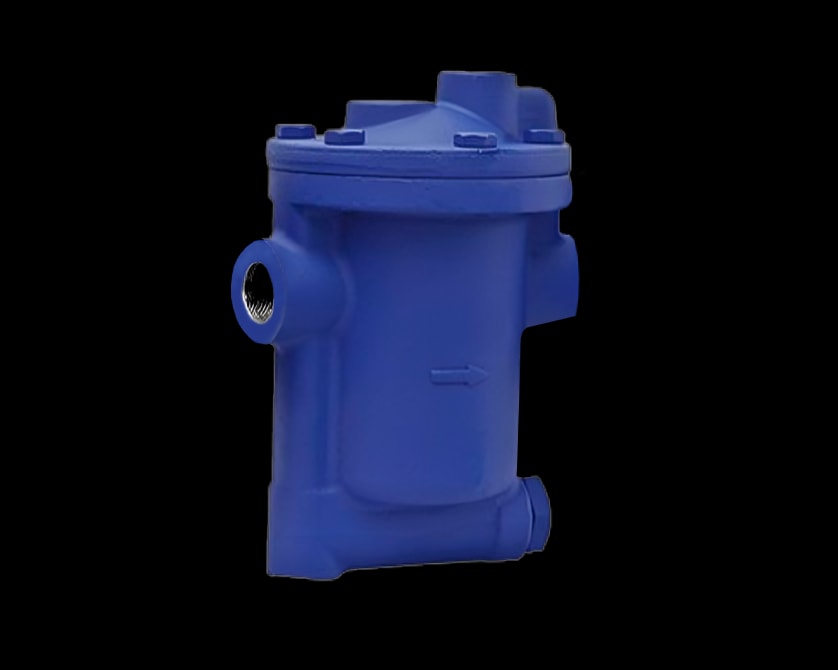

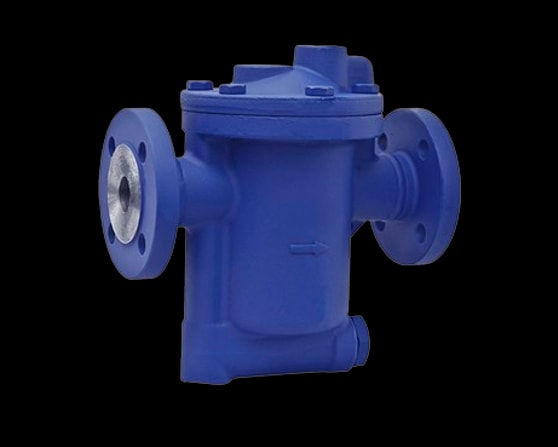

Steam traps are matched to condensate load, differential pressure and return-line backpressure.
Strainers and check valves are considered together to protect traps and downstream equipment.
Body, trim, seat and sealing materials are verified against the actual steam conditions.
Cold-start condensate loads can be much higher than steady-state loads. Include warm-up conditions and start-up duration when reviewing the line and trap duty.
Review pipe fall, low points, condensate pockets and lifting sections so liquid cannot accumulate where rapid steam flow can create damaging hydraulic shock.
Plan isolation, bypasses and service access around equipment that must be maintained while the process remains available or returns to service quickly.
Filter by valve type, material or connection.
Send the steam pressure and temperature, connection and material requirements. For steam traps, include start-up and running condensate loads, differential pressure and return-line backpressure.
