| Available Sizes | DN15-DN25 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN25 |
| Size | DN15 · DN20 · DN25 |
| Body Material | WCB |
| Operating Temperature | Up to 350°C (CS41H-B reference) |
| Reference Model | CS41H-25C-B free float |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

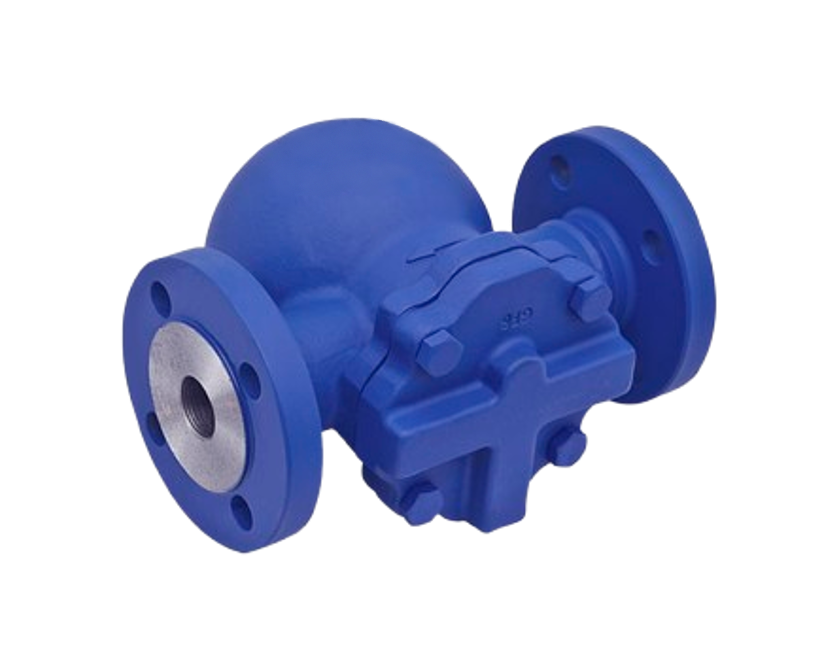

Flanged ball-float steam trap for discharging condensate from steam systems. Select the trap for the condensate load and differential pressure, and confirm the connection dimensions and installation orientation.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Reference: CS41H-25C-B free float
Lonze CS41H-B free-float trap reference, WCB body, PN25, DN15/DN20/DN25. FT44 and FT14 are different constructions and their data are excluded.
| DN | L (mm) | L1 (mm) | H1 (mm) | H2 (mm) | W (mm) |
|---|---|---|---|---|---|
| 15 | 195 | 210 | 94.5 | 107 | 132 |
| 20 | 195 | 210 | 97 | 104.5 | 132 |
| 25 | 215 | 230 | 101.5 | 111.5 | 140 |
Reference pressure designations: 16C / 25C / 40C; selected Nordic reference is PN25, WCB. Maximum published reference temperature: 350°C. L and L1 retain the source drawing notation. No reference mass is published. L/L1 are alternative lengths shown in the source; their flange-standard mapping is not stated. Specify the required face-to-face length in the order.
