Filtration & pressure loss
Specify the particle retention needed, flow rate and acceptable pressure drop. Confirm screen material and access for cleaning or maintenance.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN15-DN300 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN16 · PN25 · PN40 |
| Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Body Material | Carbon Steel · SS316 |
| Working Temperature | Confirm for selected body, trim and pressure |
| Reference Model | DIN flanged Y-strainer |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

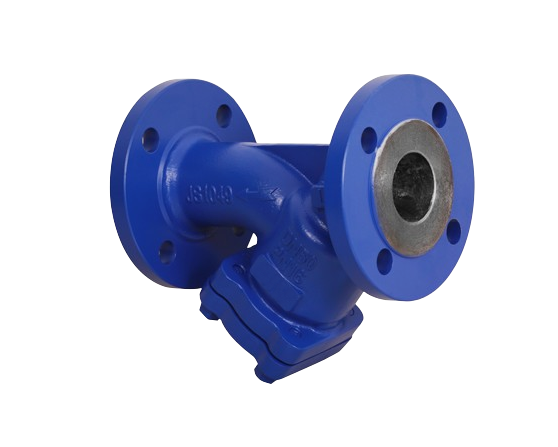

Flanged Y-strainer for particle removal in process and steam pipework, with PN16, PN25 and PN40 options. Select body and screen materials for the medium, and specify screen opening, flow and allowable pressure loss.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Reference: DIN flanged Y-strainer
DIN Y-strainer family. Reference dimensions, Kv and mass cover DN15-DN300, matching the Nordic size range. Source temperature limits and steam filtration grades are not fully specified.
| DN range | Metric thread |
|---|---|
| 15-20 | M10 x 1.5 |
| 25-32 | M16 x 1.5 |
| 40-80 | M27 x 1.5 |
| 100-150 | M33 x 1.5 |
| 200-300 | M48 x 2 |
Optional cover-drain thread dimensions; do not treat these as the main pipe connection.
| DN | L mm | H mm | Kv | PN16 kg | PN25 kg | PN40 kg |
|---|---|---|---|---|---|---|
| 15 | 130 | 85 | 7 | 3 | 3.5 | 4 |
| 20 | 150 | 95 | 11 | 4 | 4 | 5 |
| 25 | 160 | 110 | 18 | 5 | 5.5 | 6 |
| 32 | 180 | 125 | 26 | 7 | 7 | 8 |
| 40 | 200 | 145 | 37 | 9 | 9 | 10 |
| 50 | 230 | 155 | 60 | 12 | 12 | 13 |
| 65 | 290 | 175 | 100 | 16 | 16 | 19 |
| 80 | 310 | 210 | 150 | 21 | 21 | 24.5 |
| 100 | 350 | 230 | 230 | 30 | 32 | 35 |
| 125 | 400 | 270 | 330 | 43 | 47 | 51 |
| 150 | 480 | 300 | 400 | 61 | 64 | 71 |
| 200 | 600 | 385 | 650 | 121 | 144 | 144 |
| 250 | 730 | 535 | 1200 | 154 | 178 | 178 |
| 300 | 850 | 680 | 1900 | 255 | 285 | 285 |
Reference dimensions in mm; mass in kg. Kv values are as published. Steam pressure loss and screen open area require the selected mesh and flow duty.
Bellows-sealed valves, strainers, check valves and steam traps for steam supply and condensate return lines.
Explore application guidanceSpecify the particle retention needed, flow rate and acceptable pressure drop. Confirm screen material and access for cleaning or maintenance.
Provide the steam pressure and temperature, including start-up conditions. For condensate service, include the load and downstream pressure so the duty can be reviewed.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
Review quotation basket
