Shut-off & stem sealing
Define the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN15-DN400 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN16 · PN25 · PN40 |
| Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 |
| Body Material | Carbon Steel · Ductile Iron · SS316 |
| Disc Material | SS316 + Stellite · SS420 |
| Seat Material | SS304 · Stellite |
| Working Temperature | Confirm for selected body, trim and pressure |
| Stem Seal | Bellows seal |
| Body Pattern | Y-pattern |
| Reference Model | DIN Y-pattern bellows globe |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

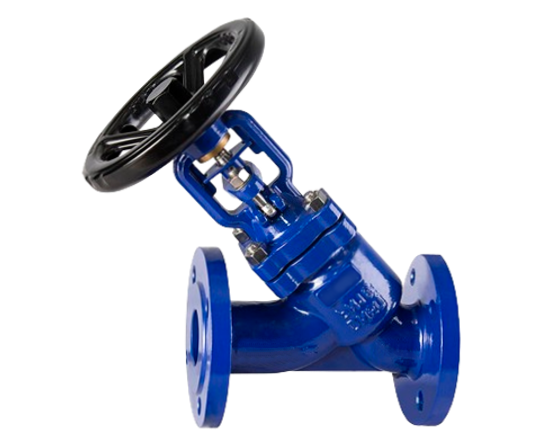

Y-pattern bellows-sealed globe valve with flanged connections for shut-off and regulation in process and steam lines. Confirm body and trim materials, differential pressure, installation orientation and dimensions.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Reference: DIN Y-pattern bellows globe
VMV DIN Y-pattern bellows globe reference, PN16/PN25/PN40, DN15-DN400. Tables apply to this stated pattern and bonnet arrangement; extended-stem and other constructions use separate drawings.
| DN | L (mm) | W diameter (mm) | H approx. (mm) |
|---|---|---|---|
| 15 | 130 | 140 | 191 |
| 20 | 150 | 140 | 196 |
| 25 | 160 | 160 | 216 |
| 32 | 180 | 160 | 226 |
| 40 | 200 | 180 | 254 |
| 50 | 230 | 200 | 280 |
| 65 | 290 | 220 | 320 |
| 80 | 310 | 250 | 362 |
| 100 | 350 | 300 | 437 |
| 125 | 400 | 350 | 480 |
| 150 | 480 | 400 | 575 |
| 200 | 600 | 450 | 731 |
| 250 | 730 | 550 | 900 |
| 300 | 850 | 600 | 950 |
| 350 | 980 | 700 | 1125 |
| 400 | 1100 | 700 | 1235 |
VMV bellows catalogue, PDF page 13. All three published PN classes use the listed values. L: face-to-face. W: handwheel diameter. H: approximate overall height as published. No mass table is published.
| Component | Published family grades |
|---|---|
| Body / bonnet | GS-C25 / JS1049 / CF8 / CF8M / CF3M |
| Seat | 13Cr / SS304 / SS316 / Stellite |
| Disc | 13Cr / F304 / F316 / Stellite |
| Bellows | SS304 / SS316L |
| Stem | 20Cr13 / F304 / F316 |
VMV bellows-globe family material list. JS1049 is the listed ductile-iron family alternative. Material options require their own pressure-temperature and medium review; the dimensional table does not establish identical mass or suitability for every combination.
Bellows-sealed valves, strainers, check valves and steam traps for steam supply and condensate return lines.
Explore application guidanceDefine the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
Provide the steam pressure and temperature, including start-up conditions. For condensate service, include the load and downstream pressure so the duty can be reviewed.
Listed body options: Carbon Steel · Ductile Iron · SS316. seat or seal options: SS304 · Stellite. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
