| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | 300PSI |
| Body Material | Ductile Iron |
| Working Temperature | -10 - 120°C |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

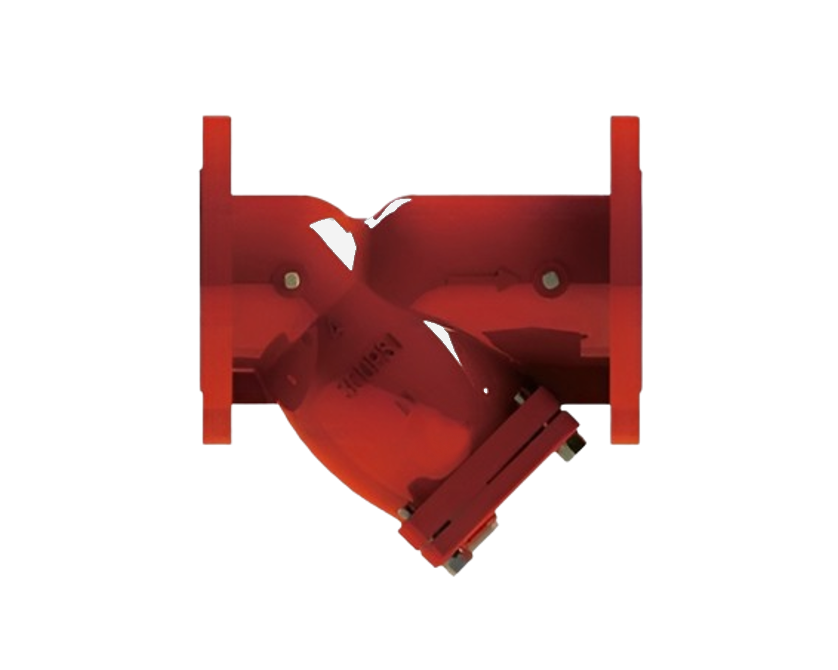

NSYS-FF Y-strainer with flanged ends, a ductile iron body, AISI 304 stainless steel screen and EPDM gasket for fire protection water pipework. The DN50-DN300 catalogue configuration is 300 PSI; specify the screen opening and allow clearance for cleaning.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
NSYS-FF Y-strainer with flanged ends, a ductile iron body, AISI 304 stainless steel screen and EPDM gasket for fire protection water pipework. The DN50-DN300 catalogue configuration is 300 PSI; specify the screen opening and allow clearance for cleaning.
| Component | Material | Specification |
|---|---|---|
| Body and cover | Ductile iron | ASTM A536 65-45-12 |
| Screen | Stainless steel | AISI 304 |
| Gasket | EPDM | - |
| Plug | Carbon steel | - |
Materials transcribed from the NSYS range sheet. View the source drawing and table.
| Size | Size (inch) | L (mm) | H (mm) | D (mm) |
|---|---|---|---|---|
| DN50 | 2 | 203 | 132 | 195 |
| DN65 | 2 1/2 | 254 | 158 | 240 |
| DN80 | 3 | 260 | 175 | 270 |
| DN100 | 4 | 308 | 202 | 320 |
| DN125 | 5 | 398 | 290 | 425 |
| DN150 | 6 | 472 | 334 | 495 |
| DN200 | 8 | 550 | 391 | 570 |
| DN250 | 10 | 654 | 460 | 700 |
| DN300 | 12 | 762 | 590 | 840 |
Dimension symbols match the drawing in the linked datasheet. Keep sufficient service clearance to withdraw the screen. View the source drawing and table.
