| Model Reference | 7282 |
|---|---|
| Available Sizes | DN50-350 |
| Requested Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel ASTM A351 CF8 |
| Connection Type | Flanged (BS EN 1092) |
| Working Temperature | -20°C to 150°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

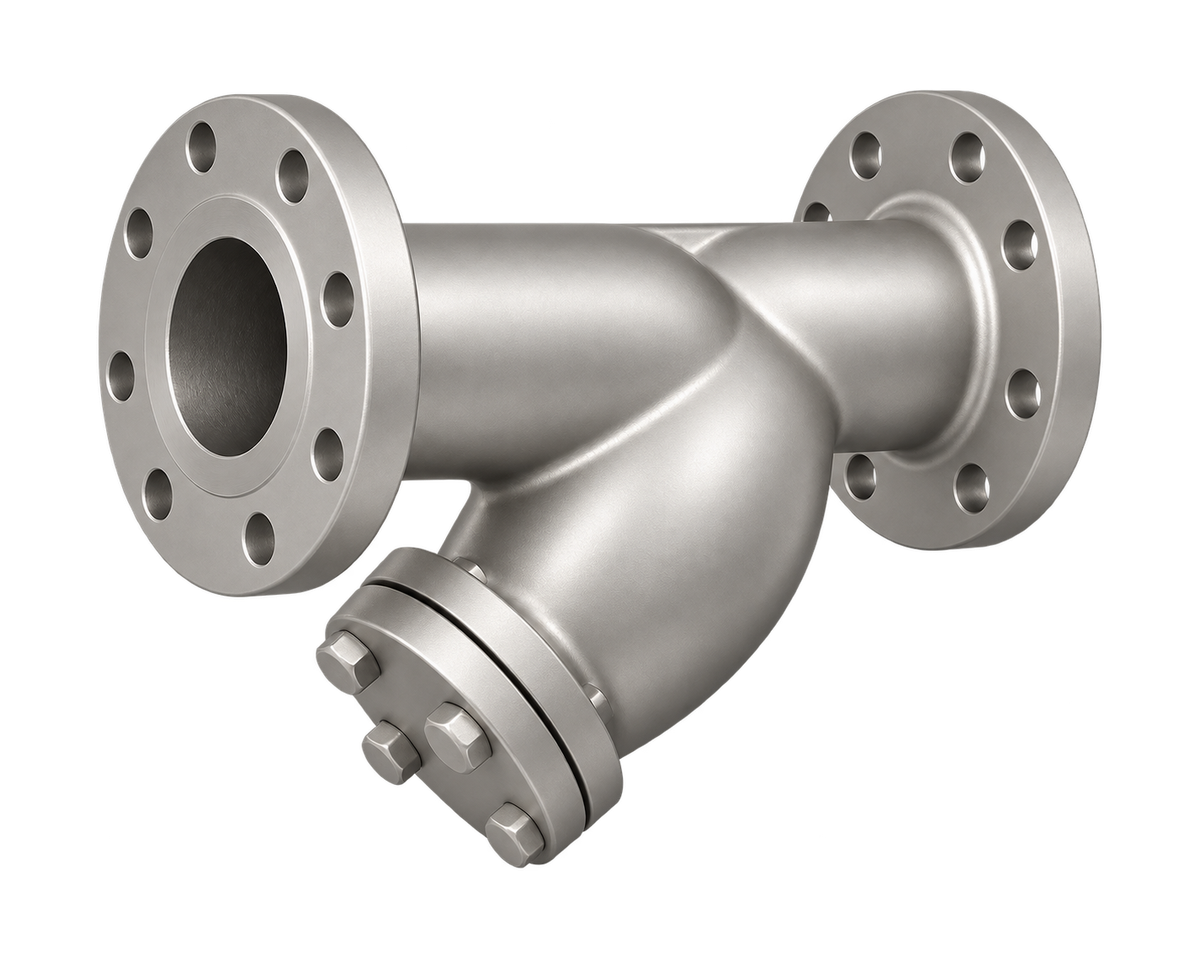

Y-pattern filtration upstream of pumps and control valves. Specify screen opening, design flow and the pressure-drop allowance.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Y-pattern filtration upstream of pumps and control valves. Specify screen opening, design flow and the pressure-drop allowance.
| DN | Inch | L / mm | D / mm | D1 / mm | D2 / mm | z–φd | H / mm |
|---|---|---|---|---|---|---|---|
| 50 | 2" | 220 | 150 | 125 | 102 | 4-φ18 | 130 |
| 65 | 2½" | 255 | 173 | 145 | 122 | 4-φ18 | 165 |
| 80 | 3" | 285 | 188 | 180 | 138 | 8-φ18 | 195 |
| 100 | 4" | 300 | 210 | 180 | 158 | 8-φ18 | 230 |
| 125 | 5" | 345 | 240 | 210 | 188 | 8-φ18 | 240 |
| 150 | 6" | 380 | 275 | 240 | 212 | 8-φ22 | 270 |
| 200 | 8" | 445 | 328 | 295 | 265 | 12-φ22 | 330 |
| 250 | 10" | 550 | 395 | 355 | 320 | 12-φ26 | 380 |
| 300 | 12" | 595 | 440 | 410 | 370 | 12-φ26 | 400 |
| 350 | 14" | 676 | 522 | 468 | 370 | 16-φ26 | 500 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 CF8 |
| 2 | Filter Element | Stainless Steel | SS304 |
| 3 | Gasket | PTFE | -- |
| 4 | Bonnet | Stainless Steel | A351 CF8 |
| 5 | Screw | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
