Condensate load & backpressure
Provide start-up and running condensate loads, inlet pressure and return-line backpressure. Confirm capacity at the available differential pressure.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | 1/2" - 1" |
|---|---|
| Connection Type | BSP · NPT |
| Pressure Rating | PN25 · PN63 |
| Body Material | A105 · F304 · F316 |
| Size | 1/2" · 3/4" · 1" |
| Operating Temperature | Up to 350°C |
| Reference Model | STD16T · STD42T |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

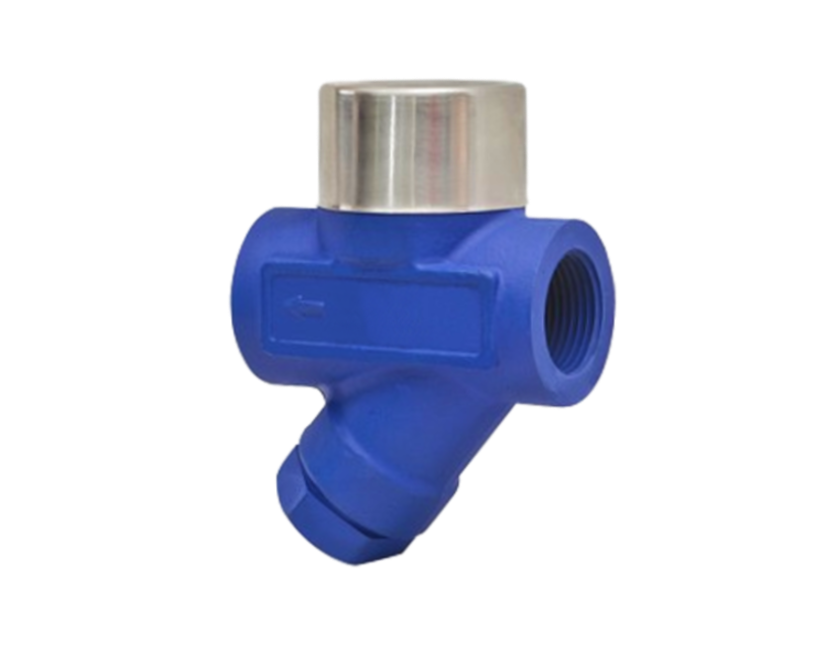

Thermodynamic disc steam trap with BSP or NPT threaded ends for condensate removal. Specify the thread, condensate load, inlet pressure, return-line backpressure and installation orientation for selection.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Reference: STD16T / STD42T
VMV forged thermodynamic disc reference family. PN25 uses STD16; PN63 uses STD42; PN100 (flanged only) uses F11 STD80. Different constructions retain separate dimensions and operating limits.
| Model | Sizes | Class | Body grades | L (mm) | H (mm) | H1 (mm) | W (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|
| STD16T | DN15 / DN20 / DN25 | PN25 | A105 / F304 / F316 | 90 | 120 | 68 | 48 | 1-1.5 |
| STD42T | DN15 / DN20 / DN25 | PN63 | A105 / F304 / F316 | 90 | 126 | 68 | 55 | 1.8 |
VMV steam catalogue, PDF pages 21-22 (printed pages 20-22). Each row covers all listed port sizes. STD16 mass is a published family range, not a mass assigned to each DN. L is the connection-to-connection length; H/H1/W follow the dimension key. Threaded models only. DN15/20/25 correspond to nominal 1/2, 3/4 and 1 inch ports; confirm BSP/NPT thread form and engagement dimensions on the order drawing.
| Reference model | Nominal class | Max. operating pressure (bar) | Max. operating temperature (°C) | Published shell P/T point |
|---|---|---|---|---|
| STD16T | PN25 | 16 | 350 | 24.5 bar at 200°C; 10.3 bar at 450°C |
| STD42T | PN63 | 42 | 350 | 62.7 bar at 200°C; 26 bar at 450°C |
Nominal pressure class describes the reference body. Operating limits, shell limits and test pressures are different quantities. Maximum pressure and maximum temperature are separate published limits; they are not a simultaneous operating point. Confirm the complete pressure-temperature envelope, selected orifice and backpressure for the duty.
Bellows-sealed valves, strainers, check valves and steam traps for steam supply and condensate return lines.
Explore application guidanceProvide start-up and running condensate loads, inlet pressure and return-line backpressure. Confirm capacity at the available differential pressure.
Provide the steam pressure and temperature, including start-up conditions. For condensate service, include the load and downstream pressure so the duty can be reviewed.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
