Discharge & response
Match K-factor, response type, orientation and activation temperature to the system design. Include the connection and finish required for the installation.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Body Material | Brass |
|---|---|
| Connection Type | BSP · NPT |
| Available Sizes | 1/2" |
| Color | Chrome · White · Brass |
| Approvals | CE · FM · UL |
| K Factor | 5.6 (80) |
| Type | Standard Response · Quick Response |
| Temperature Range | 57°C - 141°C |
| Temperature | 57°C · 68°C · 79°C · 93°C · 141°C |
| Orientation | Sidewall |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

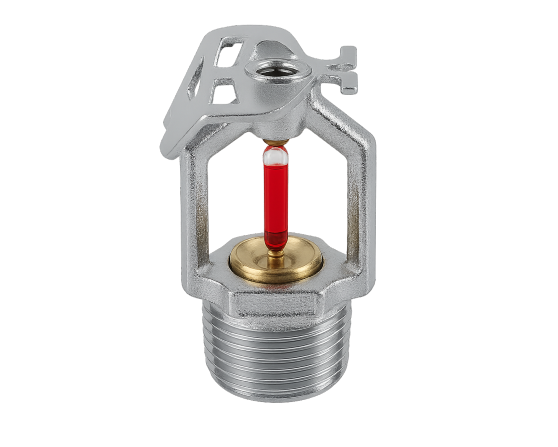

Sidewall sprinkler head with a brass body, threaded connection and standard- or quick-response options. Specify the K-factor, activation temperature, finish and thread, and check approval requirements for the selected configuration.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
Supervised isolation, check valves and sprinkler heads. Match the component to the system specification.
Explore application guidanceMatch K-factor, response type, orientation and activation temperature to the system design. Include the connection and finish required for the installation.
Specify the system pressure, installation position and connection. Confirm the supervision arrangement where applicable and the product approvals required by the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
