| Available Sizes | DN40 - DN150 |
|---|---|
| Connection Type | Flanged CL150 · Flanged PN40 |
| Size | DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 |
| Body Material | CF8 |
| Media | LNG. LO2. LN2. LAr, CO2 |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

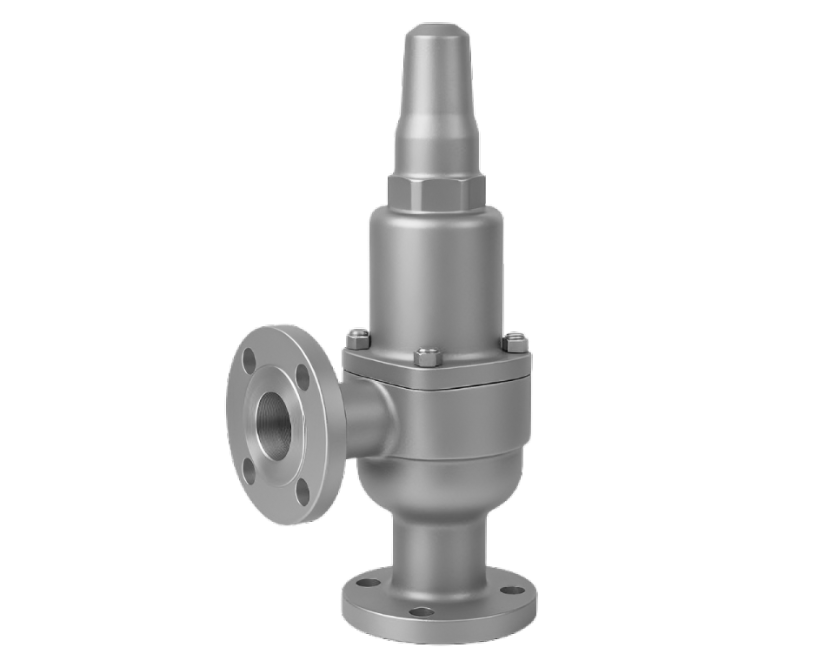

Cryogenic safety valve with a CF8 body and flanged connection options for pressure-relief duties. Specify inlet and outlet sizes and flange standards, set pressure, relieving capacity, medium, temperature and backpressure.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Cryogenic safety valve with a CF8 body and flanged connection options for pressure-relief duties. Specify inlet and outlet sizes and flange standards, set pressure, relieving capacity, medium, temperature and backpressure.
| Specification | Catalogue data |
|---|---|
| Size range | DN40 - DN150 |
| Connection | Flanged CL150 / Flanged PN40 |
| Pressure / setting | Specify rating and required set pressure |
| Operation | Spring-loaded pressure relief |
| Temperature | Confirm limits for the selected construction |
| Catalogue media | LNG, LOX, LN2, LAr, CO2 |
Catalogue options. Nominal ratings are not the allowable pressure at every temperature; confirm the selected configuration.
| Component | Catalogue material |
|---|---|
| Body | CF8 |
Materials shown are the published catalogue construction. Confirm seat, seals and any service-specific trim with the quotation.
| Engineering data | Configuration requirements |
|---|---|
| Dimension data | Order-specific dimensions required; no matched dimension table is published for this configuration. |
| Installation drawing | Confirm end-to-end length, overall height, flange standard, facing, drilling and operating/removal clearance. |
| Pressure-temperature rating | Confirm allowable inlet pressure at the relieving temperature for the selected body, trim and seals. Specify set pressure, back pressure and certified relief capacity separately. |
Nominal pressure class, temperature range and relief set pressure are separate specifications. Confirm the allowable pressure at the design temperature for the selected construction.
Valves for liquefied-gas transfer and storage, with options for stem extensions, end connections and pressure relief.
