Sleeve & process medium
Describe the solids, particle size and abrasive or chemical characteristics of the medium. Match sleeve material, pressure and operation to the duty.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN25-DN450 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN6 |
| Body Material | Aluminium · Ductile Iron · Stainless steel |
| Working Temperature | -60 - 160°C |
| Size | DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 |
| Approvals | CE |
| Operation | Pneumatic |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

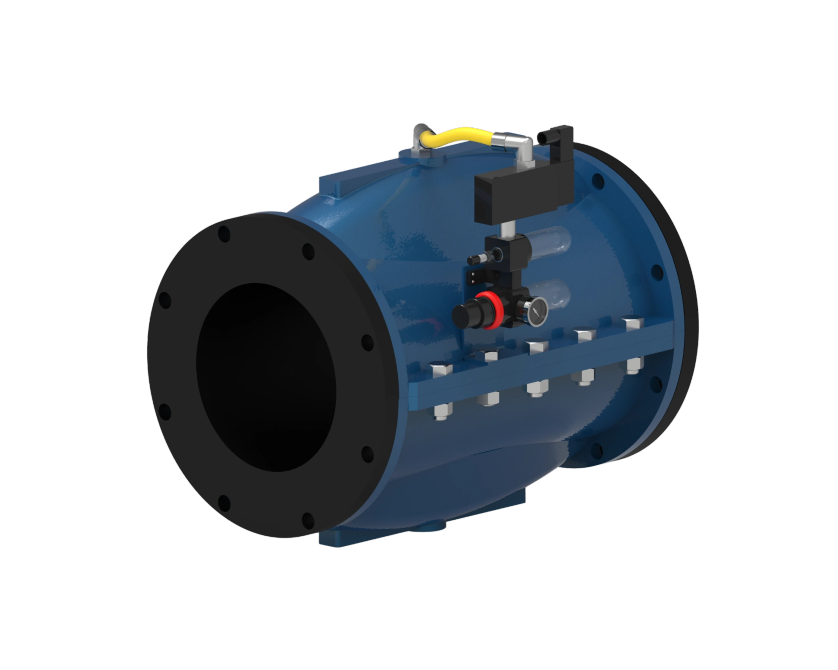

Pneumatically operated pinch valve with flanged ends for isolation or control of slurries and abrasive media. Specify the medium, sleeve requirements, process pressure and available air supply for the selected configuration.
For technical documentation or assistance with your selection, contact Nordic Valves.
Describe the solids, particle size and abrasive or chemical characteristics of the medium. Match sleeve material, pressure and operation to the duty.
Describe the process medium and normal and design conditions. Review the pressure–temperature limits for the required size, body and sealing materials.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
