Sleeve & process medium
Describe the solids, particle size and abrasive or chemical characteristics of the medium. Match sleeve material, pressure and operation to the duty.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN50-DN1200 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN10 · PN16 · PN25 · PN40 |
| Body Material | Ductile Iron |
| Working Temperature | -60 - 200°C |
| Maneuvering | Double Acting Actuator · Electric Actuator · Gearbox · Hand Lever · Handwheel · Spring Return Actuator |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 · DN500 · DN600 · DN750 · DN900 · DN1050 · DN1200 |
| Approvals | CE |
| Body Design | Hermetically sealed |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

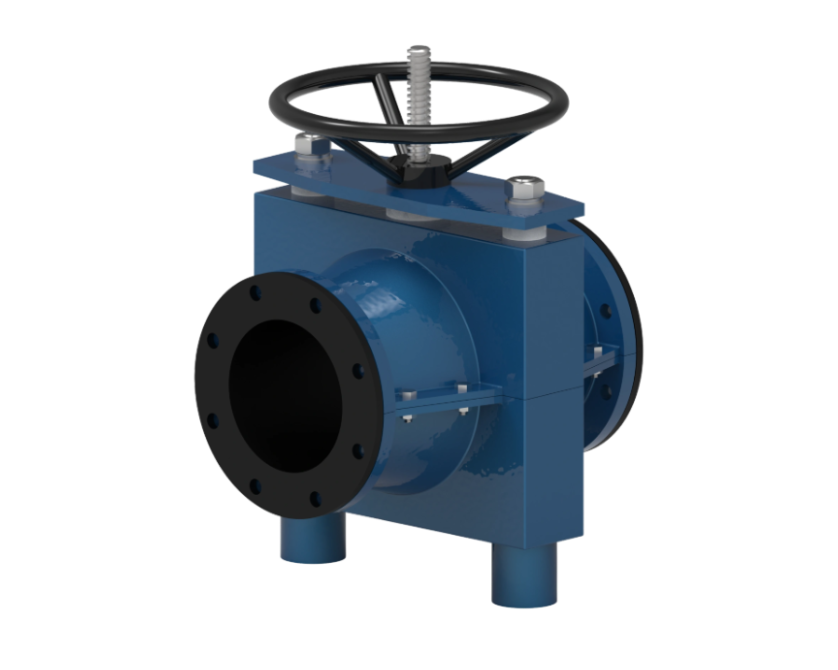

Hermetically sealed pinch-valve variant with a ductile iron body and flanged connections. Select the sleeve and operating arrangement for the medium, pressure and temperature, and confirm the installation requirements with the enquiry.
For technical documentation or assistance with your selection, contact Nordic Valves.
Describe the solids, particle size and abrasive or chemical characteristics of the medium. Match sleeve material, pressure and operation to the duty.
Describe the process medium and normal and design conditions. Review the pressure–temperature limits for the required size, body and sealing materials.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
