| Model Reference | 6382 |
|---|---|
| Available Sizes | DN15-50 |
| Requested Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Threaded (ISO 228) |
| Working Temperature | -20°C to 150°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

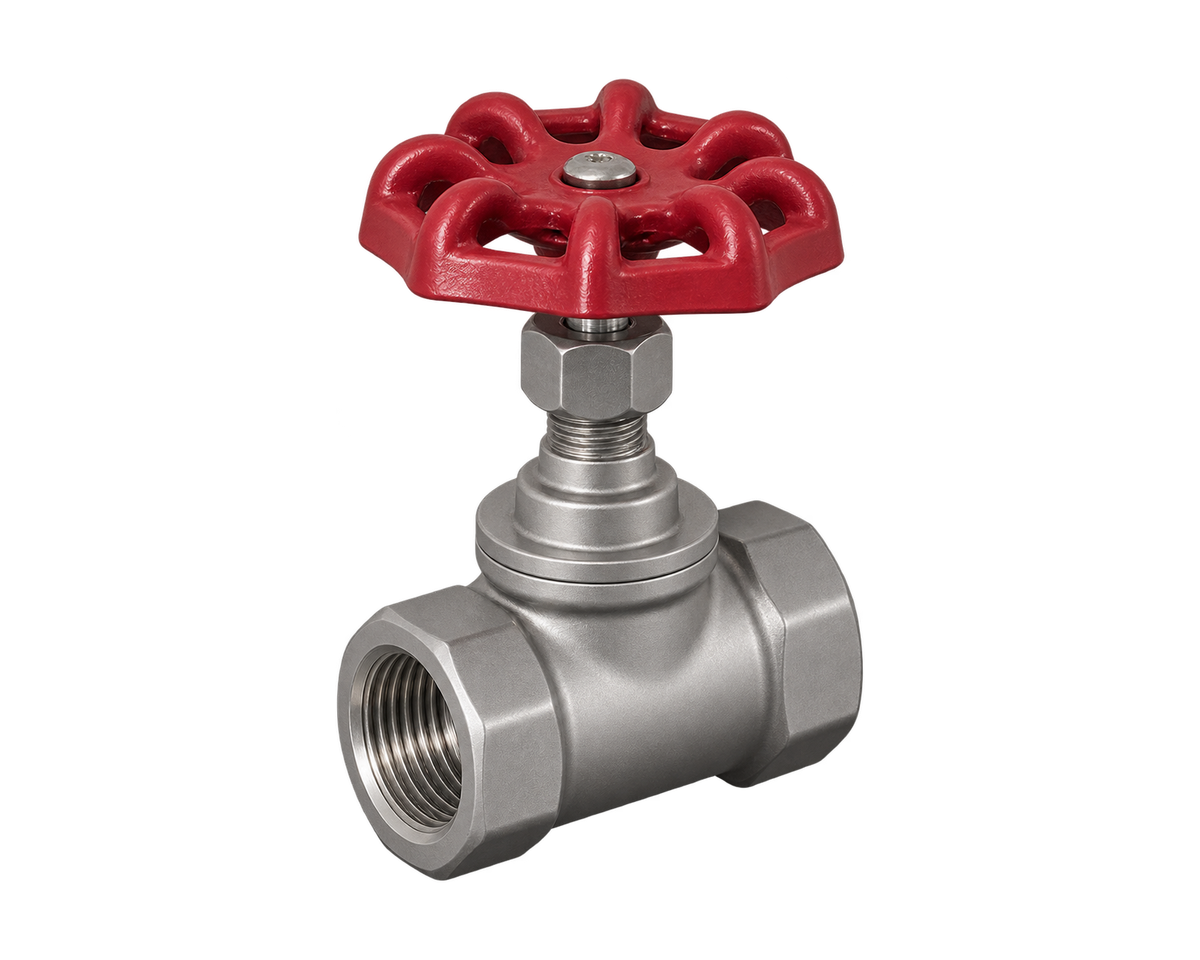

Threaded globe valve for small-bore water-cooling regulation and shut-off. Specify the normal flow and required pressure drop for selection.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Threaded globe valve for small-bore water-cooling regulation and shut-off. Specify the normal flow and required pressure drop for selection.
| DN | INCH | G | L / mm | H / mm | W / mm |
|---|---|---|---|---|---|
| 15 | ½" | G½" | 48 | 85 | 54 |
| 20 | ¾" | G¾" | 50 | 97 | 54 |
| 25 | 1" | G1" | 63 | 110 | 58 |
| 32 | 1¼" | G1¼" | 74 | 114 | 64 |
| 40 | 1½" | G1½" | 82 | 124 | 72 |
| 50 | 2" | G2" | 100 | 145 | 78 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8 |
| 2 | Disc | Stainless Steel | SS304 |
| 3 | Stem | Stainless Steel | SS304 |
| 4 | Bonnet | Stainless Steel | CF8 |
| 5 | Gasket | PTFE | -- |
| 6 | Filler | PTFE | -- |
| 7 | Packing Bushing | Stainless Steel | SS304 |
| 8 | Galnd | Stainless Steel | SS304 |
| 9 | Controller | Cast Iron | -- |
| 10 | Nut | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
Isolation, balancing, control valves, strainers and flexible connections for facility-water and CDU cooling circuits.
Explore application guidanceDefine the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
State facility-water or CDU / technology-cooling duty, coolant formulation, flow, temperature and pressure. Confirm wetted materials and the exact valve configuration for the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
