Isolation & access
Specify the open/closed isolation duty and operating arrangement. Check installation dimensions, stem clearance and access for operation and maintenance.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Model Reference | 3182 |
|---|---|
| Available Sizes | DN15-50 |
| Requested Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Threaded (ISO 7-1) |
| Working Temperature | -20°C to 120°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

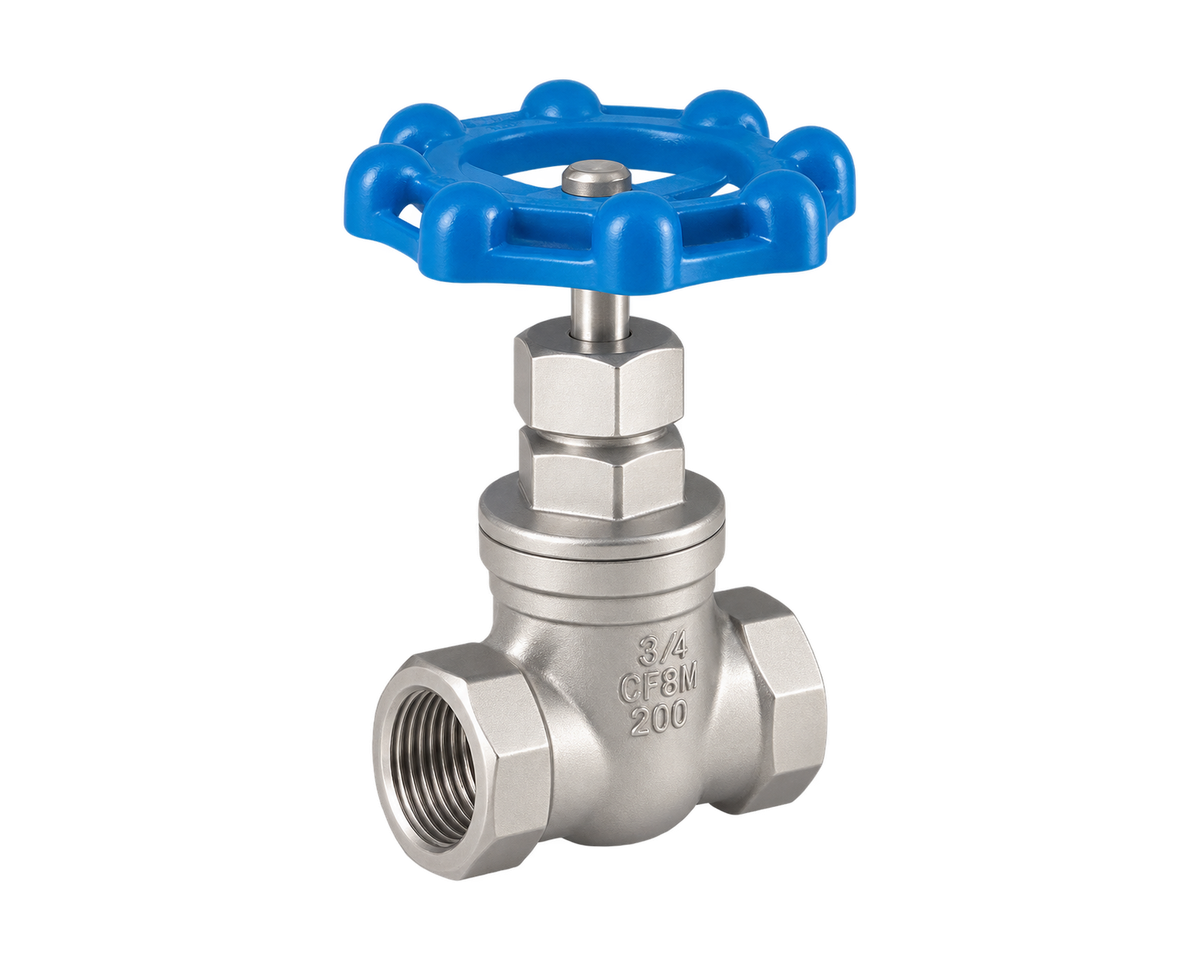

Threaded isolation valve for small water-cooling service connections. Confirm thread fit, stem clearance and the required shut-off duty.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Threaded isolation valve for small water-cooling service connections. Confirm thread fit, stem clearance and the required shut-off duty.
| DN | INCH | D / mm | L / mm | W / mm | H / mm | BSPT |
|---|---|---|---|---|---|---|
| 15 | ½" | 14.5 | 56 | 64 | 97 | BSPT½" |
| 20 | ¾" | 19.0 | 61 | 64 | 106 | BSPT¾" |
| 25 | 1" | 24.0 | 65 | 72 | 116 | BSPT1" |
| 32 | 1¼" | 30.5 | 72 | 78 | 130 | BSPT1¼" |
| 40 | 1½" | 38.0 | 79 | 96 | 150 | BSPT1½" |
| 50 | 2" | 48.0 | 89 | 97 | 165 | BSPT2" |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8 |
| 2 | Disc | Stainless Steel | CF8 |
| 3 | Cap | Stainless Steel | CF8 |
| 4 | Gasket | PTFE | -- |
| 5 | Clip Spring | Stainless Steel | SS304 |
| 6 | Flat Gasket | Stainless Steel | SS304 |
| 7 | Filler | PTFE | -- |
| 8 | Gland | Stainless Steel | SS304 |
| 9 | Gland Nut | Stainless Steel | CF8 |
| 10 | Stem | Stainless Steel | SS304 |
| 11 | Handwheel | Iron | -- |
| 12 | Nut | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
Isolation, balancing, control valves, strainers and flexible connections for facility-water and CDU cooling circuits.
Explore application guidanceSpecify the open/closed isolation duty and operating arrangement. Check installation dimensions, stem clearance and access for operation and maintenance.
State facility-water or CDU / technology-cooling duty, coolant formulation, flow, temperature and pressure. Confirm wetted materials and the exact valve configuration for the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
