Flow direction & closure
Define flow rate, installation orientation and allowable pressure loss. Include reverse-flow conditions and the required closing behaviour.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN15-DN300 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN16 · PN25 · PN40 |
| Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Body Material | Carbon Steel · SS304 · SS316 |
| Disc Material | SS316 + Stellite · SS420 |
| Seat Material | SS304 · Stellite |
| Working Temperature | Confirm for selected body, trim and pressure |
| Reference Model | H41 DIN lift check |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

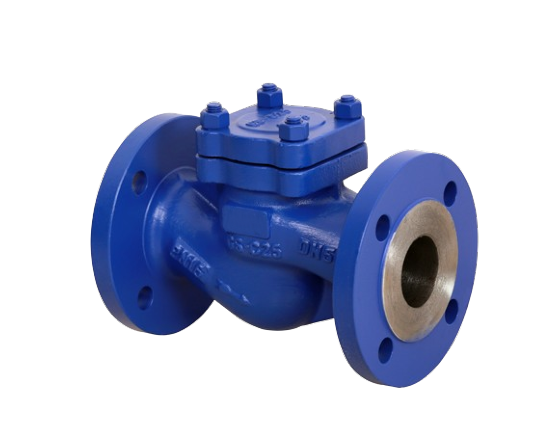

Flanged lift check valve for automatic non-return service in process or steam pipework. Select body, disc and seat materials for the medium and pressure-temperature conditions, and confirm installation orientation and pressure loss.
Applications: Steam control
For technical documentation or assistance with your selection, contact Nordic Valves.
Reference: H41 DIN lift check
DIN H41 lift-check family, PN16/25/40. Source dimensions, Kv and mass cover DN15-DN300. The selectable size range is limited to these documented rows.
| Class | Nominal MPa | Shell test MPa | Seat test MPa |
|---|---|---|---|
| PN16 | 1.6 | 2.4 | 1.8 |
| PN25 | 2.5 | 3.8 | 2.8 |
| PN40 | 4 | 6 | 4.4 |
Values retain the rounding used in the published check-valve table.
| DN | L mm | H mm | Kv | PN16 kg | PN25 kg | PN40 kg |
|---|---|---|---|---|---|---|
| 15 | 130 | 65 | 5.7 | 2.4 | 3.5 | 3.8 |
| 20 | 150 | 70 | 7.8 | 3 | 4.4 | 4.9 |
| 25 | 160 | 80 | 11.8 | 3.8 | 5 | 5.9 |
| 32 | 180 | 85 | 17.9 | 5.7 | 6 | 7.1 |
| 40 | 200 | 90 | 27.5 | 7.4 | 8 | 10.4 |
| 50 | 230 | 95 | 48 | 10.3 | 11 | 12.3 |
| 65 | 290 | 110 | 77.6 | 15.2 | 16 | 22.7 |
| 80 | 310 | 130 | 109 | 20.4 | 21 | 28.5 |
| 100 | 350 | 155 | 168 | 31 | 32 | 40 |
| 125 | 400 | 165 | 251 | 49 | 51 | 64 |
| 150 | 480 | 215 | 389 | 69 | 70 | 90 |
| 200 | 600 | 280 | 664 | 132 | 136 | 170 |
| 250 | 730 | 305 | 1017 | 198 | 218 | 240 |
| 300 | 850 | 330 | 1446 | 278 | 330 | 370 |
Kv is reproduced as the source flow-coefficient value; no steam-flow capacity is inferred. Selectable sizes are limited to the published DN15-DN300 range.
Bellows-sealed valves, strainers, check valves and steam traps for steam supply and condensate return lines.
Explore application guidanceDefine flow rate, installation orientation and allowable pressure loss. Include reverse-flow conditions and the required closing behaviour.
Provide the steam pressure and temperature, including start-up conditions. For condensate service, include the load and downstream pressure so the duty can be reviewed.
Listed body options: Carbon Steel · SS304 · SS316. seat or seal options: SS304 · Stellite. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
Review quotation basket
