| Model Reference | 5485 |
|---|---|
| Available Sizes | DN50-200 |
| Requested Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Flanged (BS EN 1092) |
| Working Temperature | -20°C to 120°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

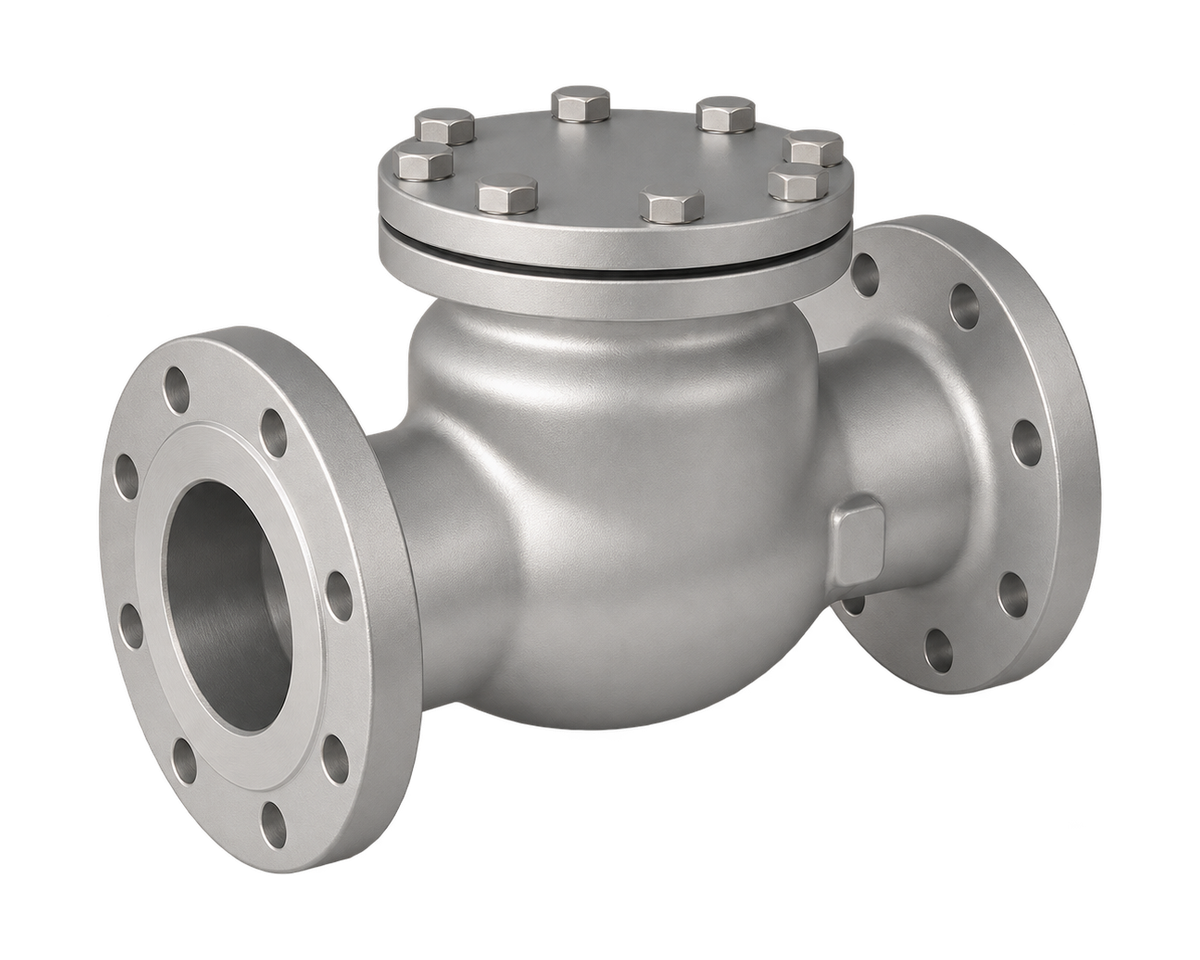

Swing check valve for stainless cooling-water pipework. Select around normal flow, reverse-flow conditions and the installation orientation.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Swing check valve for stainless cooling-water pipework. Select around normal flow, reverse-flow conditions and the installation orientation.
| DN | INCH | L mm | D / mm | D1 / mm | D2 / mm | b / mm | n-φd |
|---|---|---|---|---|---|---|---|
| 50 | 2" | 230 | 165 | 125 | 100 | 16 | 4-φ18 |
| 65 | 2½" | 290 | 185 | 145 | 120 | 18 | 8-φ18 |
| 80 | 3" | 306 | 200 | 160 | 135 | 18 | 8-φ18 |
| 100 | 4" | 352 | 220 | 180 | 155 | 20 | 8-φ18 |
| 125 | 5" | 400 | 250 | 210 | 185 | 22 | 8-φ18 |
| 150 | 6" | 475 | 285 | 240 | 210 | 22 | 8-φ23 |
| 200 | 8" | 550 | 340 | 295 | 265 | 24 | 12-φ23 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8 |
| 2 | Body Sealing Surface | Stainless Steel | CF8 |
| 3 | Valve Clack | Stainless Steel | CF8 |
| 4 | Rocker Arm | Stainless Steel | CF8 |
| 5 | Connecting components | Stainless Steel | SS304 |
| 6 | Stud Bolt | Stainless Steel | SS304 |
| 7 | Gasket | Stainless Steel | SS304 |
| 8 | Nut | Stainless Steel | -- |
| 9 | Bonnet | Stainless Steel | CF8 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
