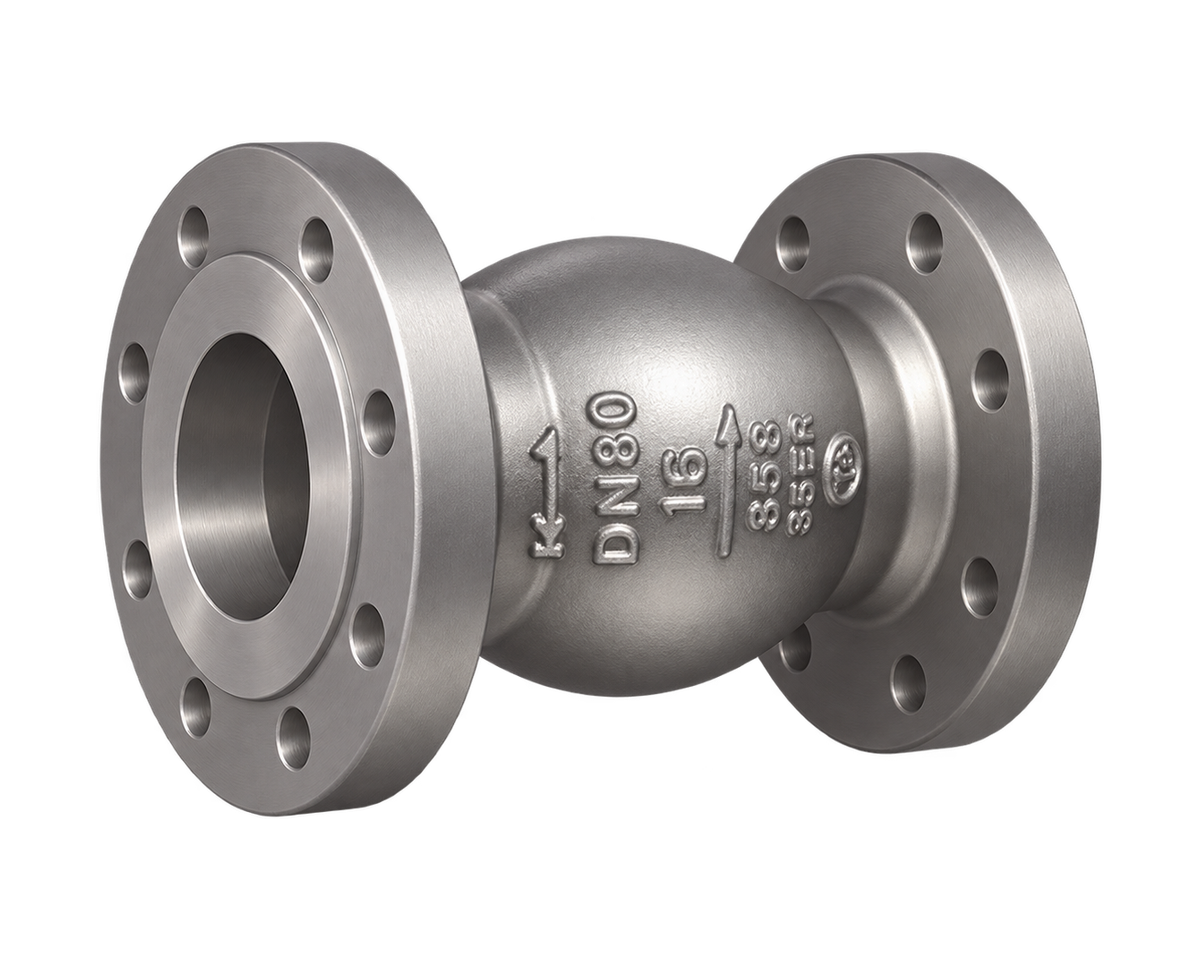

| Model Reference | 5184-T |
|---|---|
| Available Sizes | DN40-600 |
| Requested Size | DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 · DN500 · DN600 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Flanged |
| Working Temperature | 0°C to 80°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.
Automatic reverse-flow protection for cooling-water pump and distribution duties. Confirm orientation, flow rate and acceptable pressure loss.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Automatic reverse-flow protection for cooling-water pump and distribution duties. Confirm orientation, flow rate and acceptable pressure loss.
| DN | INCH | L / mm | D / mm | D1 / mm | D2 / mm | z-φd | b / mm | f / mm |
|---|---|---|---|---|---|---|---|---|
| 40 | 1½" | 112.0 | 150 | 110 | 88 | 4-φ18 | 18 | 2 |
| 50 | 2" | 120.0 | 165 | 125 | 102 | 4-φ18 | 18 | 2 |
| 65 | 2½" | 130.0 | 185 | 145 | 122 | 8-φ18 | 18 | 2 |
| 80 | 3" | 150.0 | 200 | 160 | 138 | 8-φ18 | 20 | 2 |
| 100 | 4" | 165.0 | 220 | 180 | 158 | 8-φ18 | 20 | 2 |
| 125 | 5" | 190.0 | 250 | 210 | 188 | 8-φ18 | 22 | 2 |
| 150 | 6" | 210.0 | 285 | 240 | 212 | 8-φ22 | 22 | 2 |
| 200 | 8" | 255.0 | 340 | 295 | 268 | 12-φ22 | 24 | 2 |
| 250 | 10" | 255.0 | 405 | 355 | 320 | 12-φ26 | 26 | 2 |
| 300 | 12" | 300.0 | 460 | 410 | 378 | 12-φ26 | 28 | 2 |
| 350 | 14" | 380.0 | 520 | 470 | 428 | 16-φ26 | 30 | 2 |
| 400 | 16" | 405.0 | 580 | 525 | 490 | 16-φ30 | 32 | 2 |
| 450 | 18" | 430.0 | 640 | 585 | 550 | 20-φ30 | 40 | 2 |
| 500 | 20" | 450.0 | 715 | 650 | 610 | 20-φ33 | 44 | 2 |
| 600 | 24" | 515.0 | 840 | 770 | 725 | 20-φ36 | 54 | 2 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8 |
| 2 | Seat | Stainless Steel+EPDM | SS304 |
| 3 | Disc | Stainless Steel | CF8 |
| 4 | Spring | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
