| Available Sizes | DN10-DN50 |
|---|---|
| Connection Type | Socket Weld |
| Pressure Rating | PN40 |
| Body Material | CF8 |
| Ball Material | CF8 |
| Size | DN10 · DN15 · DN20 · DN25 · DN32 · DN40 · DN50 |
| Media | LNG. LO2. LN2. LAr, CO2 |
| Maneuvering | Double Acting Actuator · Electric Actuator · Hand Lever · Spring Return Actuator |
| Stem Design | Long stem |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

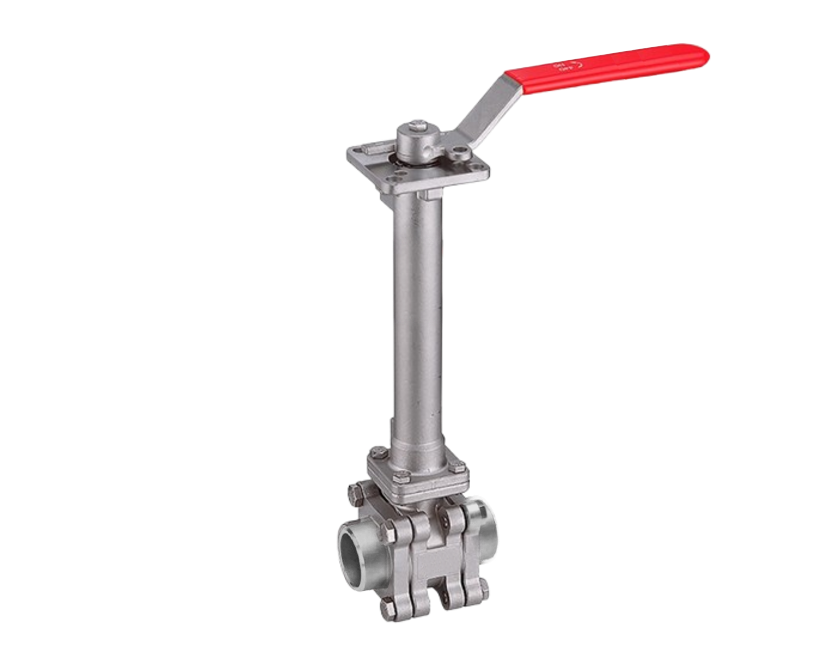

Long-stem cryogenic ball valve with a CF8 body and socket-weld ends for low-temperature isolation. Include the socket dimensions, medium, design conditions, stem clearance and required operating method in the enquiry.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Long-stem cryogenic ball valve with a CF8 body and socket-weld ends for low-temperature isolation. Include the socket dimensions, medium, design conditions, stem clearance and required operating method in the enquiry.
| Specification | Catalogue data |
|---|---|
| Size range | DN10-DN50 |
| Connection | Socket Weld |
| Nominal rating | PN40 |
| Design | Long stem |
| Operation | double-acting pneumatic, electric actuator, hand lever, spring-return pneumatic |
| Family temperature* | -196°C to +80°C |
| Catalogue media | LNG, LOX, LN2, LAr, CO2 |
Catalogue options. Nominal ratings are not the allowable pressure at every temperature; confirm the selected configuration. *Documented family temperature range; confirm pressure-temperature limits and the selected trim.
| Component | Catalogue material |
|---|---|
| Body | CF8 |
| Ball | CF8 |
Materials shown are the published catalogue construction. Confirm seat, seals and any service-specific trim with the quotation.
| DN | Size (inch) | D bore | ID socket | L1 | C | H1 | H2 | H3 | h | F depth |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 3/8 | 9.6 | 17.8 | 67 | 156 | 39.0 | 200 | 274 | 8 | Not stated |
| 15 | 1/2 | 15.0 | 22.0 | 75 | 156 | 39.0 | 200 | 274 | 8 | 16.2 |
| 20 | 3/4 | 20.0 | 27.4 | 80 | 156 | 42.6 | 200 | 276 | 8 | 18.8 |
| 25 | 1 | 25.0 | 34.1 | 90 | 181 | 47.2 | 200 | 287 | 10 | 20.4 |
| 32 | 1 1/4 | 31.0 | 42.9 | 110 | 181 | 51.2 | 200 | 292 | 10 | 22 |
| 40 | 1 1/2 | 38.0 | 49.0 | 120 | 395 | 58.5 | 300 | 403 | 13 | 23.4 |
| 50 | 2 | 50.0 | 61.5 | 140 | 395 | 76.2 | 300 | 423 | 13 | 24.8 |
All linear dimensions are in mm. L1 = selected end-to-end length; C = handle length. D = ball bore; CD/G = butt-weld end diameters; ID = socket bore. H1, H2, H3 and h follow the exact drawing datums. DN is the nominal-size mapping of the source inch size. Supplied CG3D 3-piece reference, CF8M body and PCTFE seat, socket-weld ends. This is a reference variant of the current CF8 PN40 catalogue product. Confirm the quoted body, extension and connections before installation. Use the approved order drawing for installation and fabrication.
| Component | Source arrangement material |
|---|---|
| Body | CF8M |
| End cap | CF8M / CF3M |
| Ball | CF8M |
| Stem | 17-4 PH stainless steel |
| Ball seat | PCTFE (Kel-F) |
| Body seal | Graphite / PCTFE |
| Thrust washer | PCTFE (Kel-F) |
| O-ring | Viton |
| Stem packing | PCTFE (Kel-F) |
| Handle and fasteners | SS304 |
| Extension | CF8M |
| Thrust bearing | 25% carbon + 75% PTFE |
| Extension gasket | Graphite / PCTFE |
Materials apply to the supplied reference arrangement. Supplied CG3D 3-piece reference, CF8M body and PCTFE seat, socket-weld ends. This is a reference variant of the current CF8 PN40 catalogue product. Confirm the quoted body, extension and connections before installation.
| DN | Square E (mm) | ISO pad A | ISO pad B |
|---|---|---|---|
| 10 | 9 | F04 | F05 |
| 15 | 9 | F04 | F05 |
| 20 | 9 | F04 | F05 |
| 25 | 11 | F05 | F07 |
| 32 | 11 | F05 | F07 |
| 40 | 14 | F07 | F10 |
| 50 | 14 | F07 | F10 |
Source CG3D direct-mount arrangement. F04/F05/F07/F10 are ISO mounting designations, not diameters in mm. Confirm the selected actuator interface. F socket depth is not stated for the 3/8-inch source row.
| Engineering data | Configuration requirements |
|---|---|
| Dimension data | Reference table and drawing: DN10, DN15, DN20, DN25, DN32, DN40, DN50. CG3D-20 socket-weld reference dimensions. |
| Installation drawing | Confirm end-to-end length, socket bore/depth, pipe size and wall thickness, overall height and operating/removal clearance. |
| Pressure-temperature rating | Obtain the allowable-pressure table or curve versus temperature for the selected body, seat and seals, including minimum and maximum design temperature. Nominal rating and a family temperature range do not define this curve. |
Nominal pressure class, temperature range and relief set pressure are separate specifications. Confirm the allowable pressure at the design temperature for the selected construction.
Supplied CG3D 3-piece reference, CF8M body and PCTFE seat, socket-weld ends. This is a reference variant of the current CF8 PN40 catalogue product. Confirm the quoted body, extension and connections before installation.
