| Available Sizes | DN25-DN150 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN40 |
| Body Material | CF8 |
| Ball Material | CF8 |
| Size | DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 |
| Media | LNG. LO2. LN2. LAr, CO2 |
| Maneuvering | Double Acting Actuator · Electric Actuator · Hand Lever · Spring Return Actuator |
| Stem Design | Long stem |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

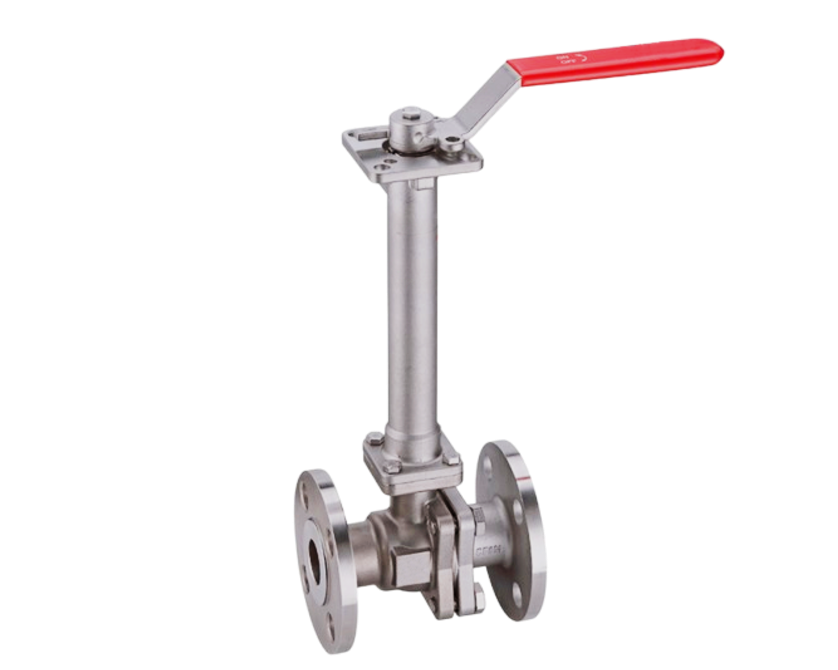

Long-stem cryogenic ball valve with a CF8 body and flanged ends for low-temperature isolation. Specify the medium, minimum design temperature, pressure class, flange standard and required operating method.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Long-stem cryogenic ball valve with a CF8 body and flanged ends for low-temperature isolation. Specify the medium, minimum design temperature, pressure class, flange standard and required operating method.
| Specification | Catalogue data |
|---|---|
| Size range | DN25-DN150 |
| Connection | Flanged |
| Nominal rating | PN40 |
| Design | Long stem |
| Operation | double-acting pneumatic, electric actuator, hand lever, spring-return pneumatic |
| Family temperature* | -196°C to +80°C |
| Catalogue media | LNG, LOX, LN2, LAr, CO2 |
Catalogue options. Nominal ratings are not the allowable pressure at every temperature; confirm the selected configuration. *Documented family temperature range; confirm pressure-temperature limits and the selected trim.
| Component | Catalogue material |
|---|---|
| Body | CF8 |
| Ball | CF8 |
Materials shown are the published catalogue construction. Confirm seat, seals and any service-specific trim with the quotation.
| Engineering data | Configuration requirements |
|---|---|
| Dimension data | Order-specific dimensions required; no matched dimension table is published for this configuration. |
| Installation drawing | Confirm end-to-end length, overall height, flange standard, facing, drilling and operating/removal clearance. |
| Pressure-temperature rating | Obtain the allowable-pressure table or curve versus temperature for the selected body, seat and seals, including minimum and maximum design temperature. Nominal rating and a family temperature range do not define this curve. |
Nominal pressure class, temperature range and relief set pressure are separate specifications. Confirm the allowable pressure at the design temperature for the selected construction.
Valves for liquefied-gas transfer and storage, with options for stem extensions, end connections and pressure relief.
Explore application guidanceConfirm the required shut-off function, flow path and seat material. Include operating torque, cycling frequency and any actuation requirements.
Specify the medium, minimum temperature and operating pressure. Include stem-extension needs, insulation clearance and any oxygen-cleaning requirements in your enquiry.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
