| Model Reference | 1283W |
|---|---|
| Available Sizes | DN15-100 |
| Requested Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 |
| Pressure Rating | PN16 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Welded |
| Working Temperature | -20°C to 150°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

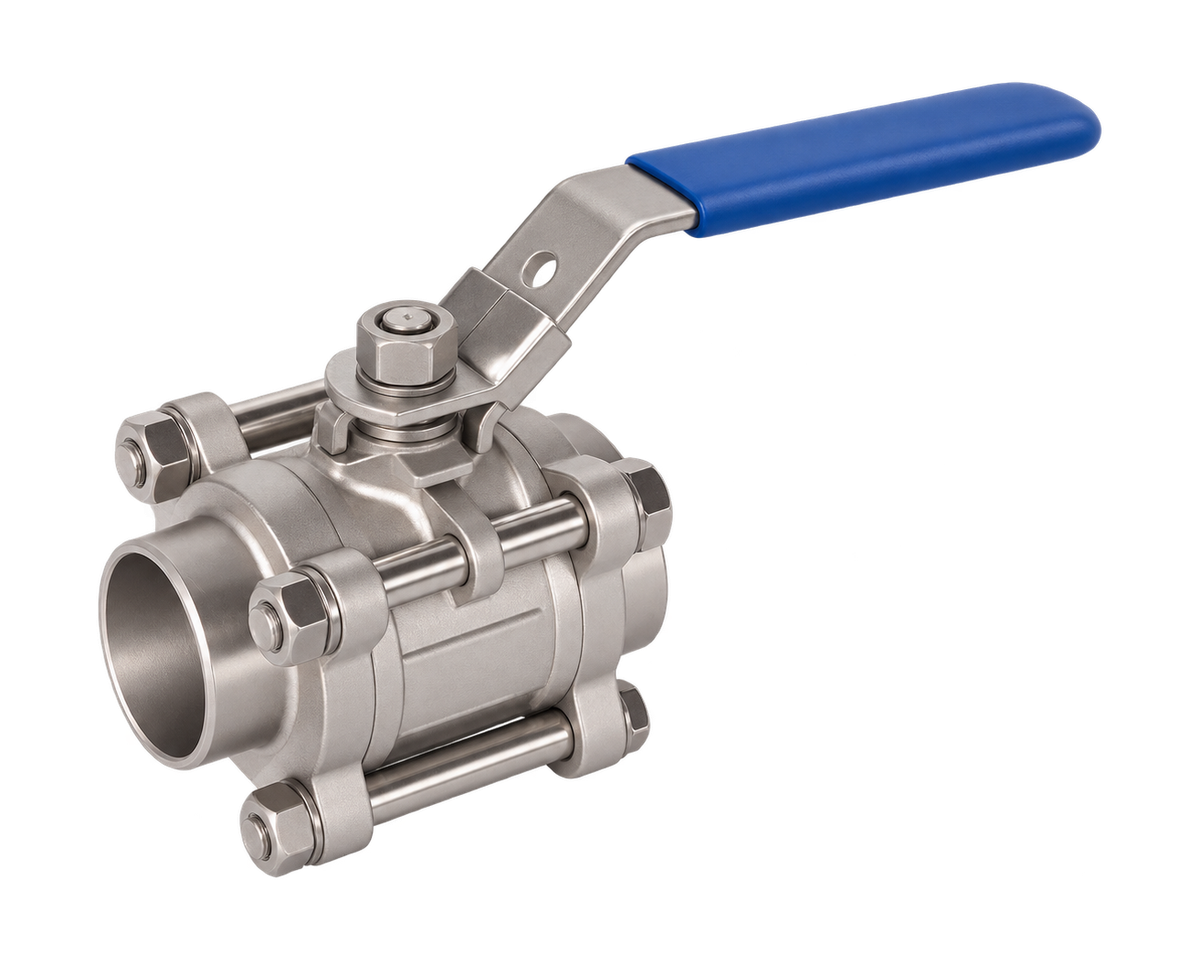

Weld-connected three-piece isolation valve for stainless pipework. Include tube dimensions and the weld-end preparation in the enquiry.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Weld-connected three-piece isolation valve for stainless pipework. Include tube dimensions and the weld-end preparation in the enquiry.
| DN | INCH | L / mm | D / mm | H / mm | W / mm |
|---|---|---|---|---|---|
| 15 | ½" | 70 | 15.0 | 50 | 105 |
| 20 | ¾" | 79 | 20.0 | 52 | 110 |
| 25 | 1" | 89 | 25.0 | 64 | 125 |
| 32 | 1¼" | 104 | 32.0 | 69 | 140 |
| 40 | 1½" | 112 | 38.0 | 76 | 160 |
| 50 | 2" | 138 | 50.0 | 86 | 160 |
| 65 | 2½" | 180 | 65.0 | 120 | 211 |
| 80 | 3" | 203 | 80.0 | 150 | 234 |
| 100 | 4" | 256 | 100 | 170 | 311 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Bonnet | Stainless Steel | CF8 |
| 2 | Seat | PTFE | -- |
| 3 | Ball | Stainless Steel | SS304 |
| 4 | Body | Stainless Steel | CF8 |
| 5 | Bolt | Stainless Steel | SS304 |
| 6 | Gasket | Stainless Steel | SS304 |
| 7 | Nut | Stainless Steel | SS304 |
| 8 | Stem | Stainless Steel | SS304 |
| 9 | Thrust Washer | PTFE | -- |
| 10 | Packing | PTFE | -- |
| 11 | Packing Glang | Stainless Steel | SS304 |
| 12 | Lever | Stainless Steel+Rubber | SS201 |
| 13 | Spring Washer | Stainless Steel | SS304 |
| 14 | Nut | Stainless Steel | SS304 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
