| Model Reference | 1282 |
|---|---|
| Available Sizes | DN15-50 |
| Requested Size | DN15 · DN20 · DN25 · DN32 · DN40 · DN50 |
| Pressure Rating | PN25 |
| Body Material | Stainless Steel CF8 |
| Connection Type | Threaded (ISO 7-1) |
| Working Temperature | -20°C to 150°C |
| Suitable Medium | Water; ethylene glycol solution up to 50% concentration |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

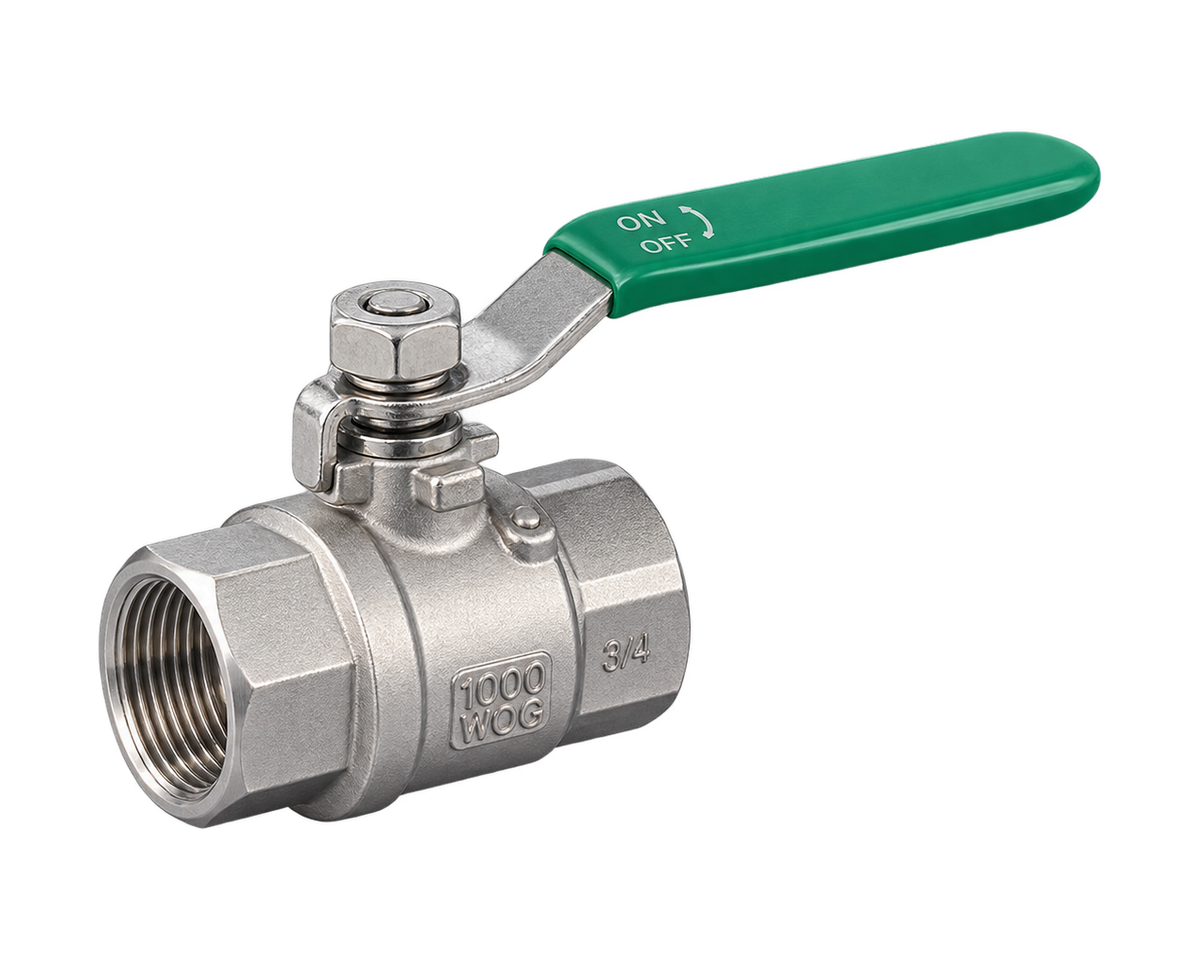

Two-piece isolation valve for small-bore cooling branches. Match the thread, sealing materials and operating conditions to the connection.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Two-piece isolation valve for small-bore cooling branches. Match the thread, sealing materials and operating conditions to the connection.
| DN | INCH | Rc | L / mm | T / mm | d / mm | W / mm | H / mm |
|---|---|---|---|---|---|---|---|
| 15 | ½" | Rc½" | 62.0 | 12 | 15 | 105 | 55 |
| 20 | ¾" | Rc¾" | 71.0 | 14 | 20 | 128 | 59 |
| 25 | 1" | Rc1" | 81.5 | 15 | 25 | 146 | 66 |
| 32 | 1¼" | Rc1¼" | 96.0 | 15 | 32 | 146 | 71 |
| 40 | 1½" | Rc1½" | 105.0 | 17 | 40 | 162 | 82 |
| 50 | 2" | Rc2" | 120.0 | 20 | 50 | 192 | 90 |
Dimensions use the letter references in the datasheet drawing. Pressure-class columns refer to the specified flange drilling.
| Drawing no. | Part | Material | Specification |
|---|---|---|---|
| 1 | Bonnet | Stainless Steel | CF8 |
| 2 | Gasket | PPL | -- |
| 3 | Ball | Stainless Steel | SS304 |
| 4 | Lever | Stainless Steel | SS304 |
| 5 | Gasket | Stainless Steel | SS304 |
| 6 | Nut | Stainless Steel | SS304 |
| 7 | Sleeve | Stainless Steel | SS304 |
| 8 | Packing | PPL | -- |
| 9 | Stem | Stainless Steel | SS304 |
| 10 | Gasket | PPL | -- |
| 11 | Sealing Ring | PPL | -- |
| 12 | Body | Stainless Steel | CF8 |
Material options are shown where listed. Confirm the complete wetted construction for the selected coolant and configuration.
