Installation dimensions
Provide pipe material, outside diameter and the installation or repair dimensions. Include pressure, gasket requirements and access conditions.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | Ø55-323 |
|---|---|
| Max. Working Pressure | 16 bar |
| Working Temperature | 0°C - +70°C |
| Clamp Material | SS304 |
| Gasket Material | EPDM |
| Material Compatibility | Any Pipe Material |
| Size | Ø55-60, L=150mm · Ø60-67, L=200mm · Ø75-85, L=200mm · Ø88-98, L=200mm · Ø108-118, L=200mm · Ø108-118, L=300mm · Ø115-128, L=200mm · Ø115-128, L=300mm · Ø132-142, L=200mm · Ø132-142, L=300mm · Ø151-161, L=200mm · Ø151-161, L=300mm · Ø158-172, L=200mm · Ø158-172, L=300mm · Ø168-182, L=200mm · Ø168-182, L=300mm · Ø217-229, L=200mm · Ø217-229, L=300mm · Ø270-288, L=200mm · Ø270-288, L=300mm · Ø304-320, L=200mm · Ø304-320, L=300mm · Ø323-336, L=200mm · Ø323-336, L=300mm |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

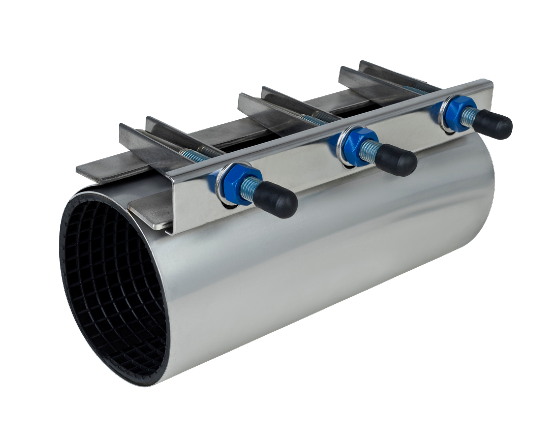

Stainless steel repair clamp with an SS304 clamp body and EPDM gasket for pipe repair. Select the clamping range and repair length against the actual pipe outside diameter, surface condition and damaged area.
Applications: Water treatment
For technical documentation or assistance with your selection, contact Nordic Valves.
Isolation, air management and pipe connections. Consider the medium and the network as a whole.
Explore application guidanceProvide pipe material, outside diameter and the installation or repair dimensions. Include pressure, gasket requirements and access conditions.
Tell us the water quality, operating pressure and pipe material. Include any coating, elastomer and drinking-water documentation requirements for the project.
Listed seat or seal options: EPDM. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
