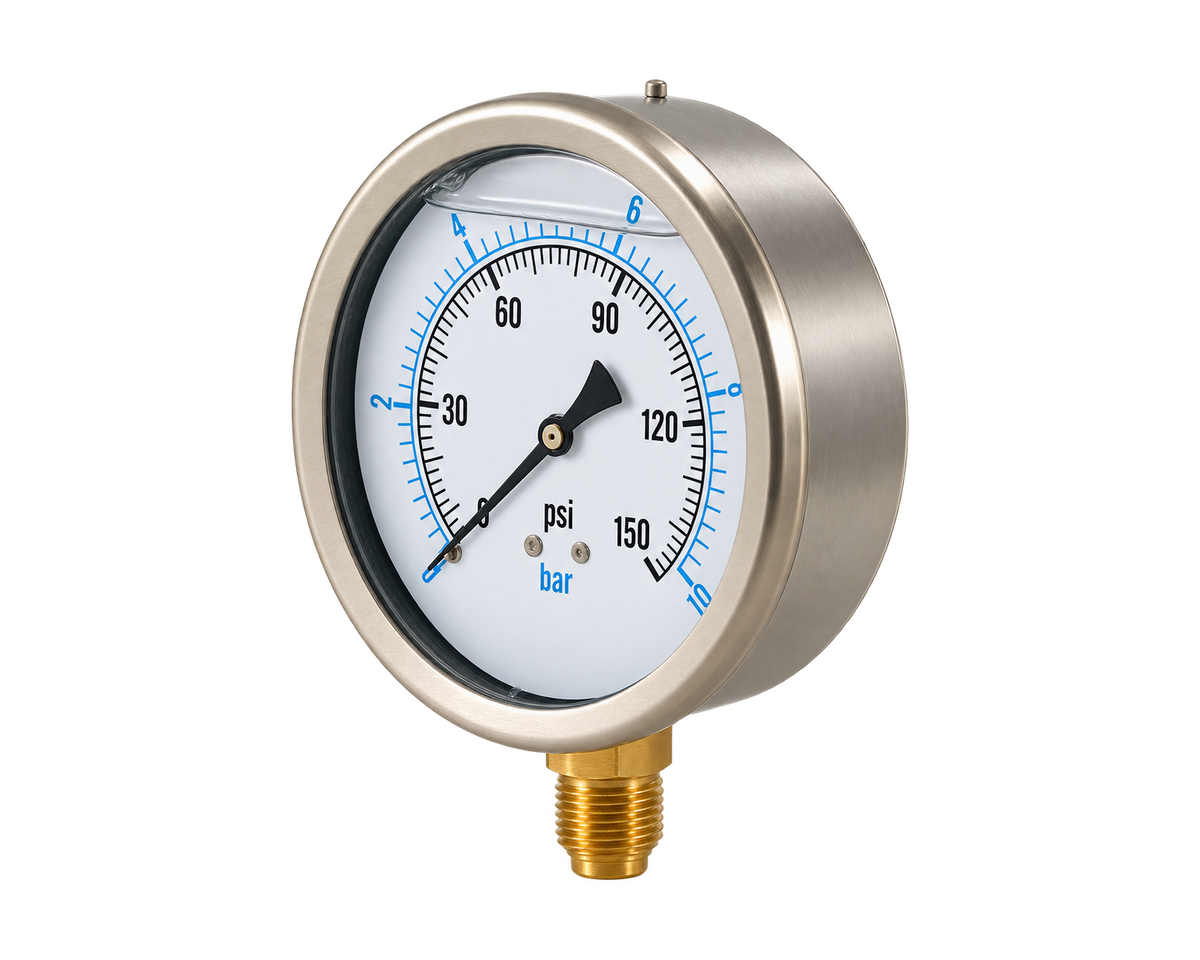

| Model Reference | S-B |
|---|---|
| Available Sizes | Dial 65 / 100 mm |
| Material | Stainless Steel SS304 case; brass socket |
| Connection Type | BSP bottom entry: ¼ inch (65 mm dial) / ½ inch (100 mm dial) |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
| Ambient Temperature | -10°C to 60°C |
| Accuracy Class | 1.6 |
| Protection | IP65 |
| Dial Diameter | 65 mm · 100 mm |
| Pressure Measurement Range | -1 to 4 bar · 0 to 7 bar · 0 to 10 bar · 0 to 16 bar · 0 to 20 bar |
| Operating Pressure | 75% of full scale value |
Catalogue options. Operating limits depend on the selected size, materials and configuration.
Local pressure indication for facility cooling-water systems. Select the scale and process connection; the catalogue limits operating pressure to 75% of full scale.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Local pressure indication for facility cooling-water systems. Select the scale and process connection; the catalogue limits operating pressure to 75% of full scale.
| Range / bar | Model |
|---|---|
| -1 to 4 | S-B1 |
| 0 to 7 | S-B7 |
| 0 to 10 | S-B10 |
| 0 to 16 | S-B16 |
| 0 to 20 | S-B20 |
Maximum operating pressure is 75% of the selected full-scale value.
Isolation, balancing, control valves, strainers and flexible connections for facility-water and CDU cooling circuits.
Explore application guidanceSpecify the measurement range, process connection and installation orientation. For temperature measurement, include stem length and thermowell requirements.
State facility-water or CDU / technology-cooling duty, coolant formulation, flow, temperature and pressure. Confirm wetted materials and the exact valve configuration for the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
