| Available Sizes | DN65-DN100 |
|---|---|
| Connection Type | Butt Weld |
| Pressure Rating | 20 bar |
| Body Material | CF8 |
| Disc Material | S30408 |
| Size | DN65 · DN80 · DN100 |
| Media | NG, O2, N2, Ar, CO2 |
| Stem Design | Short stem |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

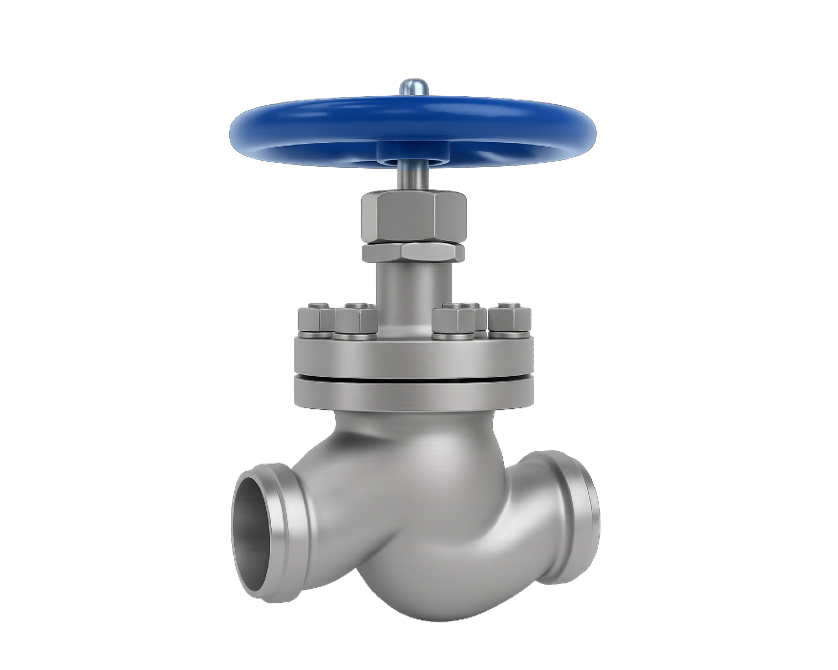

Short-stem cryogenic globe valve with a CF8 body and butt-weld ends. Check the minimum design temperature and installation arrangement for the selected construction, together with medium, pressure and weld-end dimensions.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Short-stem cryogenic globe valve with a CF8 body and butt-weld ends. Check the minimum design temperature and installation arrangement for the selected construction, together with medium, pressure and weld-end dimensions.
| Specification | Catalogue data |
|---|---|
| Size range | DN65-DN100 |
| Connection | Butt Weld |
| Nominal rating | 20 bar |
| Design | Short stem |
| Operation | Manual handwheel |
| Source temperature* | -40°C to +80°C |
| Catalogue media | NG, O2, N2, Ar, CO2 |
Catalogue options. Nominal ratings are not the allowable pressure at every temperature; confirm the selected configuration. *Documented family temperature range; confirm pressure-temperature limits and the selected trim.
| Component | Catalogue material |
|---|---|
| Body | CF8 |
| Disc | S30408 |
Materials shown are the published catalogue construction. Confirm seat, seals and any service-specific trim with the quotation.
| DN | H open | H closed | K | D | D0 | D1 | D2 |
|---|---|---|---|---|---|---|---|
| 65 | 275 | 250 | 216 | Ø200 | Ø65 | Ø70 | Ø76 |
| 80 | 316 | 288 | 241 | Ø250 | Ø80 | Ø81 | Ø89 |
| 100 | 346 | 313 | 292 | Ø315 | Ø100 | Ø100 | Ø108 |
| 100 | 346 | 313 | 275 | Ø315 | Ø100 | Ø106.3 | Ø114.3 |
Linear and diameter dimensions are in mm; weights are in kg. Pressure bands are in MPa (1 MPa = 10 bar). Height and length datums follow the drawing. Thread designations and ISO mounting codes are not linear dimensions. PN20 short-stem butt-weld arrangement for gaseous media, DN65-DN100. The two DN100 rows have different weld ends and lengths. Source temperature range is -40°C to +80°C. Use the approved order drawing for installation and fabrication.
| Component | Source arrangement material |
|---|---|
| Body | CF8 |
| Hexagon Screw | S30408 |
| Hexagon Nut | S30408 |
| Disc Sealing | PTFE |
| Stem | S30408 |
| Connecting Nut | S30408 |
| Disc | S30408 |
| V Ring | PTFE |
| Hand Wheel | HT200 |
| Gasket | RPTFE |
| Gland Nut | S30408 |
| Bonnet | S30408 |
Materials apply to the supplied reference arrangement. PN20 short-stem butt-weld arrangement for gaseous media, DN65-DN100. The two DN100 rows have different weld ends and lengths. Source temperature range is -40°C to +80°C.
| Engineering data | Configuration requirements |
|---|---|
| Dimension data | Reference table and drawing: DN65, DN80, DN100. Dimensions and connection reference. |
| Installation drawing | Confirm end-to-end length, pipe outside diameter, wall thickness, weld preparation and operating/removal clearance. |
| Pressure-temperature rating | Obtain the allowable-pressure table or curve versus temperature for the selected body, seat and seals, including minimum and maximum design temperature. Nominal rating and a family temperature range do not define this curve. |
Nominal pressure class, temperature range and relief set pressure are separate specifications. Confirm the allowable pressure at the design temperature for the selected construction.
PN20 short-stem butt-weld arrangement for gaseous media, DN65-DN100. The two DN100 rows have different weld ends and lengths. Source temperature range is -40°C to +80°C.
Valves for liquefied-gas transfer and storage, with options for stem extensions, end connections and pressure relief.
Explore application guidanceDefine the shut-off or regulating duty, differential pressure and leakage requirements. Review seat, trim and stem-sealing details for the selected service.
Specify the medium, minimum temperature and operating pressure. Include stem-extension needs, insulation clearance and any oxygen-cleaning requirements in your enquiry.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
