Isolation & access
Specify the open/closed isolation duty and operating arrangement. Check installation dimensions, stem clearance and access for operation and maintenance.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN50-DN300 |
|---|---|
| Connection Type | Flanged x Grooved |
| Pressure Rating | 300PSI |
| Body Material | Ductile Iron |
| Working Temperature | -10 - 120°C |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 |
| Approvals | FM |
| Stem Design | Outside screw & yoke (OS&Y) |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

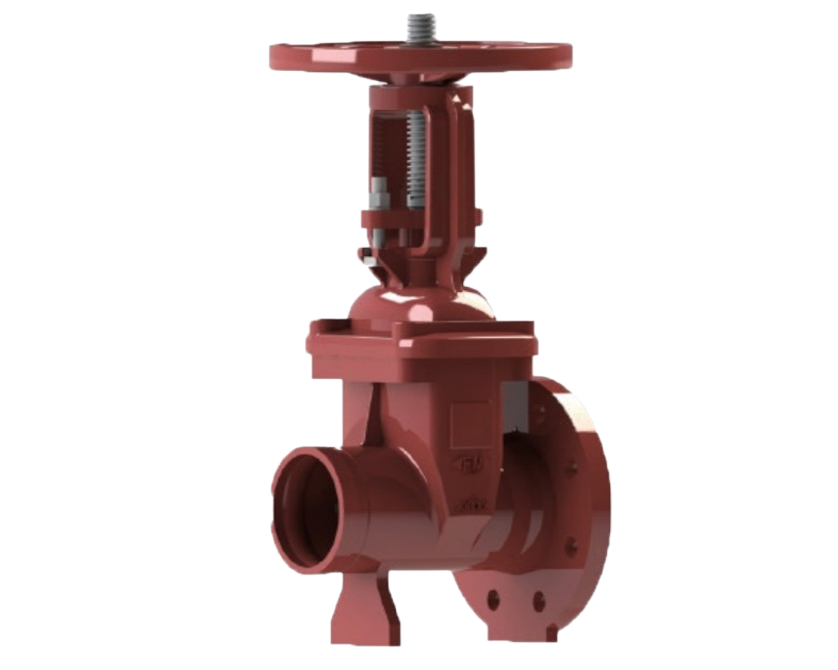

NSG OSY ductile iron gate valve with an outside screw and yoke with a rising stem and flanged x grooved ends for fire protection and sprinkler water isolation. The catalogue range is DN50-DN300 at 300 PSI; specify the connection standard and required operating or supervisory arrangement.
Applications: Fire protection
For technical documentation or assistance with your selection, contact Nordic Valves.
NSG OSY ductile iron gate valve with an outside screw and yoke with a rising stem and flanged x grooved ends for fire protection and sprinkler water isolation. The catalogue range is DN50-DN300 at 300 PSI; specify the connection standard and required operating or supervisory arrangement.
FM Certificate of Compliance: FM 1120 / FM 1130. Approval identification PR468420, granted 1 March 2024.
| Component | Material | Specification |
|---|---|---|
| Body and bonnet | Ductile iron | ASTM A536 65-45-12 |
| Wedge | EPDM-coated ductile iron | Resilient seated |
| Disc nut | Bronze | ASTM B62 |
| Stem | Stainless steel | AISI 304 |
| Gasket | EPDM | - |
| Thrust collar | Bronze | ASTM C51100 |
| Gland, wrench nut and post plate | Ductile iron | ASTM A536 65-45-12 |
Material reference for the OS&Y construction and connection shown in the linked datasheet. View the source drawing and table.
| Size | Size (inch) | L (mm) | H (mm) | D (mm) |
|---|---|---|---|---|
| DN50 | 2 | 178 | 409 | 160 |
| DN65 | 2 1/2 | 191 | 409 | 160 |
| DN80 | 3 | 203 | 463 | 220 |
| DN100 | 4 | 229 | 522 | 220 |
| DN125 | 5 | 254 | 715 | 280 |
| DN150 | 6 | 267 | 715 | 280 |
| DN200 | 8 | 292 | 913 | 370 |
| DN250 | 10 | 330 | 1118 | 420 |
| DN300 | 12 | 356 | 1300 | 420 |
Dimension symbols match the connection-specific drawing. These dimensions are not a reference for NRS or mechanical-joint valves. View the source drawing and table.
