Movement & installation
Define installed length, movement, vibration and end connections. Review pressure thrust, pipe supports, anchors and every wetted material.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Model Reference | GFLEX-F1 |
|---|---|
| Available Sizes | DN25-600 |
| Requested Size | DN25 · DN32 · DN40 · DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 · DN500 · DN600 |
| Pressure Rating | PN16 · PN25 |
| Material | EPDM joint; carbon steel / stainless steel flanges |
| Connection Type | Floating flanges |
| Working Temperature | -15°C to 115°C |
| Selection Basis | Catalogue range; exact size, pressure, materials and coolant compatibility confirmed for the project |
| Seal Material | EPDM |
| Flange Material | Carbon Steel · Stainless Steel |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

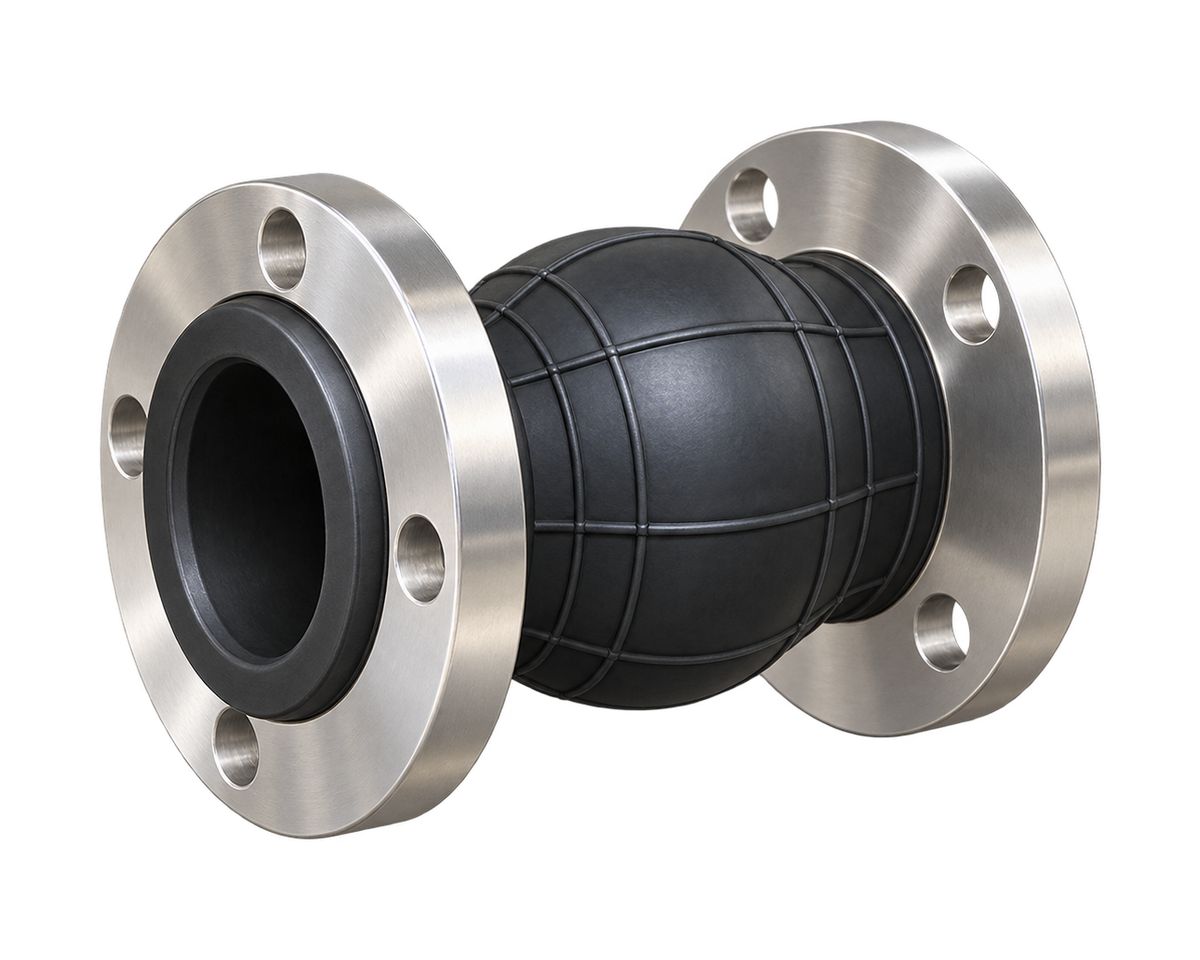

Flexible joint for movement and vibration in facility cooling-water pipework. Confirm flange material, movement, pressure thrust, restraints and the coolant formulation.
Applications: Data Centers & AI Cooling
For technical documentation or assistance with your selection, contact Nordic Valves.
Flexible joint for movement and vibration in facility cooling-water pipework. Confirm flange material, movement, pressure thrust, restraints and the coolant formulation.
Isolation, balancing, control valves, strainers and flexible connections for facility-water and CDU cooling circuits.
Explore application guidanceDefine installed length, movement, vibration and end connections. Review pressure thrust, pipe supports, anchors and every wetted material.
State facility-water or CDU / technology-cooling duty, coolant formulation, flow, temperature and pressure. Confirm wetted materials and the exact valve configuration for the project.
Listed body options: EPDM joint; carbon steel / stainless steel flanges. seat or seal options: EPDM. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
