Diaphragm & valve body
Match the diaphragm to the process and cleaning media. Specify the body arrangement, flow duty and required manual or pneumatic operation.
Loading…
Your products and information will be ready in a moment.
Your products and information will be ready in a moment.
| Available Sizes | DN10 - DN50 |
|---|---|
| Connection Type | BSP · NPT |
| Pressure Rating | 10 bar |
| Working Temperature | -10°C to +120°C |
| Body Material | SS316 |
| Diaphragm Material | PTFE+EPDM · SILICONE · VITON |
| Thread Type | Female |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

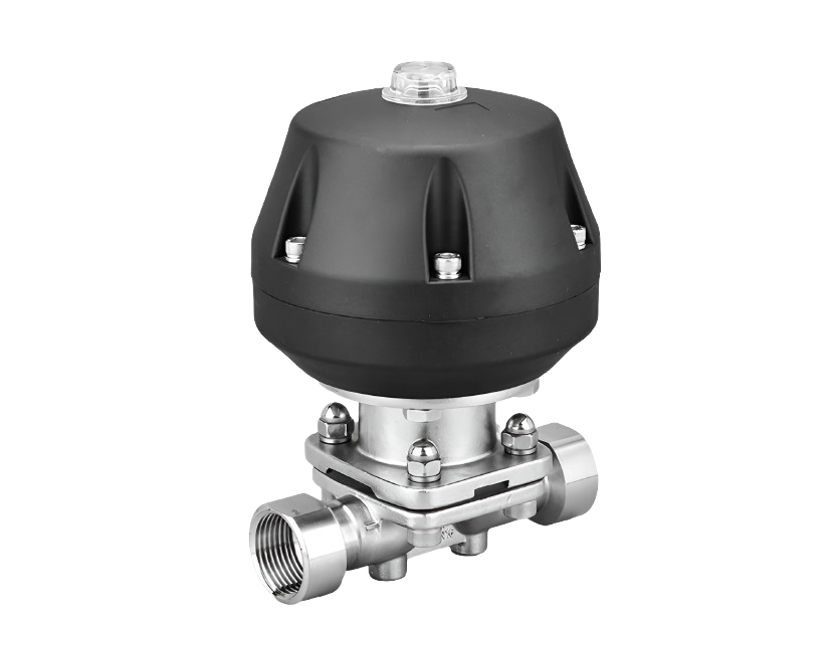

Sanitary diaphragm valve with an SS316 body and female threaded connections. Select the thread standard and diaphragm material for the process line, taking the product, cleaning media and operating temperature into account.
Applications: Sanitary applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Product-contact materials, hygienic connections and cleaning cycles. Specify the valve around your process.
Explore application guidanceMatch the diaphragm to the process and cleaning media. Specify the body arrangement, flow duty and required manual or pneumatic operation.
Specify the process medium, cleaning chemicals and temperatures. Include surface finish, drainability and product-contact documentation requirements in the technical review.
Listed body options: SS316. seat or seal options: PTFE+EPDM · SILICONE · VITON. Match the selected combination to the medium and operating temperature.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
