| Available Sizes | 3/8"-2" |
|---|---|
| Connection Type | BSP · NPT |
| Pressure Rating | PN40 |
| Body Material | CF8 |
| Disc Material | S30408 |
| Size | 3/8" · 1/2" · 3/4" · 1" · 1 1/4" · 1 1/2" · 2" |
| Media | LNG. LO2. LN2. LAr |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

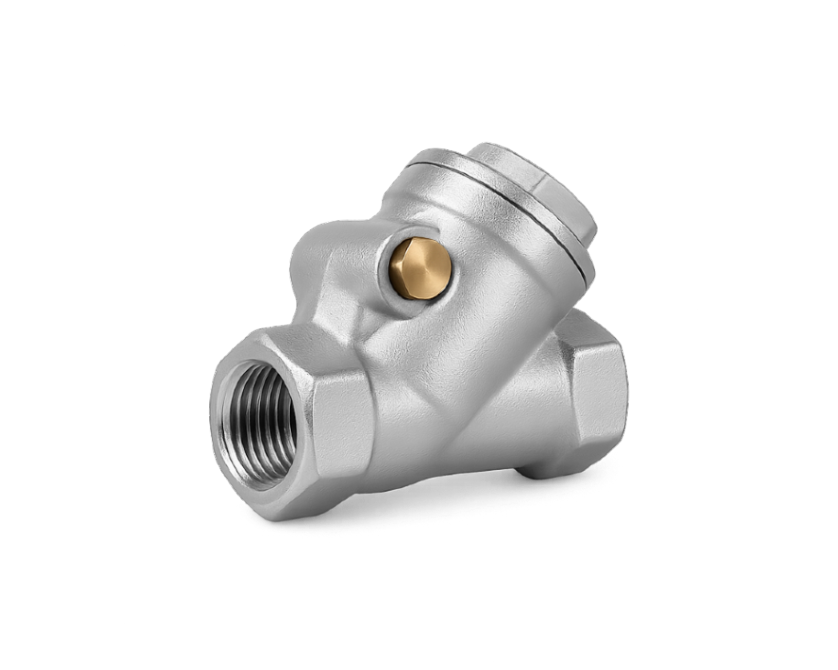

Cryogenic swing check valve with a CF8 body and BSP or NPT threaded ends. Match the thread to the pipework and specify the medium, design conditions, flow and installation orientation.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Cryogenic swing check valve with a CF8 body and BSP or NPT threaded ends. Match the thread to the pipework and specify the medium, design conditions, flow and installation orientation.
| Specification | Catalogue data |
|---|---|
| Size range | 3/8"-2" |
| Connection | BSP / NPT |
| Nominal rating | PN40 |
| Operation | Automatic non-return |
| Source temperature* | -196°C to +80°C |
| Catalogue media | LNG, LOX, LN2, LAr |
Catalogue options. Nominal ratings are not the allowable pressure at every temperature; confirm the selected configuration. *Documented family temperature range; confirm pressure-temperature limits and the selected trim.
| Component | Catalogue material |
|---|---|
| Body | CF8 |
| Disc | S30408 |
Materials shown are the published catalogue construction. Confirm seat, seals and any service-specific trim with the quotation.
| DN | Size (inch) | L | H | 2-M | D0 | Weight (kg) |
|---|---|---|---|---|---|---|
| 10 | 3/8 | 54 | 34.5 | 17 | Ø10 | 0.50 |
| 15 | 1/2 | 67 | 39 | 21 | Ø15 | 0.60 |
| 25 | 1 | 95 | 55 | 32 | Ø25 | 0.65 |
| 40 | 1 1/2 | 137 | 69 | 47 | Ø40 | 0.75 |
| 50 | 2 | 147 | 85 | 58 | Ø50 | 1.00 |
Linear and diameter dimensions are in mm; weights are in kg. Pressure bands are in MPa (1 MPa = 10 bar). Height and length datums follow the drawing. Thread designations and ISO mounting codes are not linear dimensions. PN40 threaded source arrangement, DN10, DN15, DN25, DN40 and DN50. DN20 and DN32 dimensions are not supplied. The source 2-M column is reproduced as a drawing value; it does not identify the BSP/NPT thread designation. Use the approved order drawing for installation and fabrication.
| Component | Source arrangement material |
|---|---|
| Bonnet | CF8 |
| Body | CF8 |
| Disc | HPb59-1 |
| Gasket | T2 |
| Gasket | PTFE |
| Nut | HPb59-1 |
| Rolling Bar | HPb59-1 |
| Round Pin | S30408 |
Materials apply to the supplied reference arrangement. PN40 threaded source arrangement, DN10, DN15, DN25, DN40 and DN50. DN20 and DN32 dimensions are not supplied. The source 2-M column is reproduced as a drawing value; it does not identify the BSP/NPT thread designation.
| Engineering data | Configuration requirements |
|---|---|
| Dimension data | Reference table and drawing: DN10, DN15, DN25, DN40, DN50. Dimensions and connection reference. |
| Installation drawing | Confirm BSP or NPT, male/female ends, thread sizes, engagement, end-to-end length and installation clearance. |
| Pressure-temperature rating | Obtain the allowable-pressure table or curve versus temperature for the selected body, seat and seals, including minimum and maximum design temperature. Nominal rating and a family temperature range do not define this curve. |
Nominal pressure class, temperature range and relief set pressure are separate specifications. Confirm the allowable pressure at the design temperature for the selected construction.
PN40 threaded source arrangement, DN10, DN15, DN25, DN40 and DN50. DN20 and DN32 dimensions are not supplied. The source 2-M column is reproduced as a drawing value; it does not identify the BSP/NPT thread designation.
