| Body Material | Ductile Iron |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | PN10 · PN16 · PN25 |
| Operator by Size | DN100-350 = Handwheel DN400 - 2000 = Gearbox / Actuator |
| Epoxy Coating | >250 μm |
| Color | RAL5015 |
| Approvals | ACS · PZH · WRAS |
| Maneuvering | Electric Actuator · Gearbox |
| Available Sizes | DN100-DN2000 |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

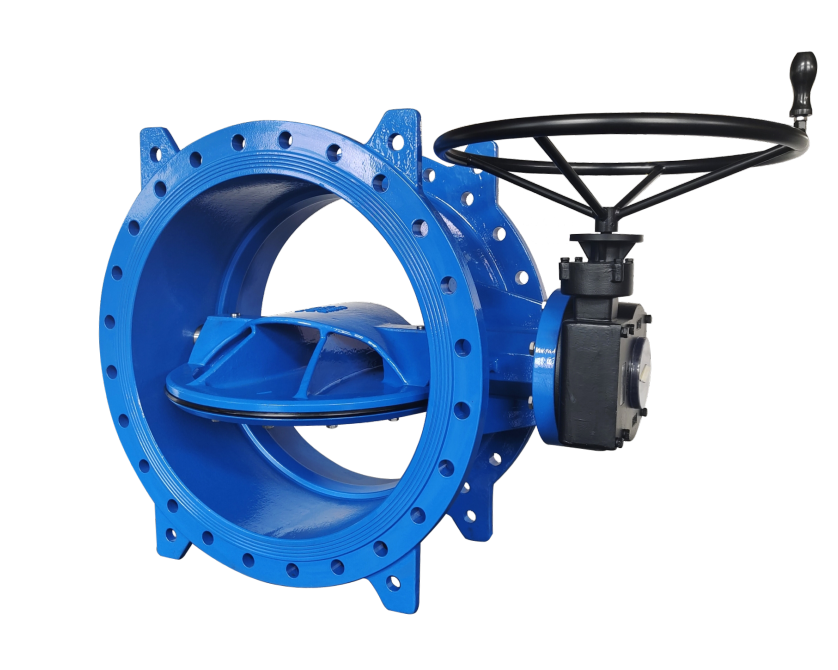

Double-eccentric butterfly valve with a ductile iron body and flanged ends for water and wastewater pipework. Check the face-to-face dimension, flange drilling and operating arrangement for the selected size.
Applications: Water treatment
For technical documentation or assistance with your selection, contact Nordic Valves.
Isolation valves, air-release valves, pipe couplings, flange adaptors and repair clamps for water and wastewater networks.
Explore application guidanceReview disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Tell us the water quality, operating pressure and pipe material. Include any coating, elastomer and drinking-water documentation requirements for the project.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
