| Available Sizes | DN50-DN900 |
|---|---|
| Connection Type | Flanged |
| Pressure Rating | 150LB~600LB (PN16~PN100) |
| Body Material | CF8 |
| Disc Material | CF8 |
| Size | DN50 · DN65 · DN80 · DN100 · DN125 · DN150 · DN200 · DN250 · DN300 · DN350 · DN400 · DN450 · DN500 · DN600 · DN700 · DN800 · DN900 |
| Media | LNG. LO2. LN2. LAr, CO2 and more |
| Maneuvering | Double Acting Actuator · Electric Actuator · Gearbox · Hand Lever · Spring Return Actuator |
| Valve Design | Triple eccentric |
Catalogue options. Operating limits depend on the selected size, materials and configuration.

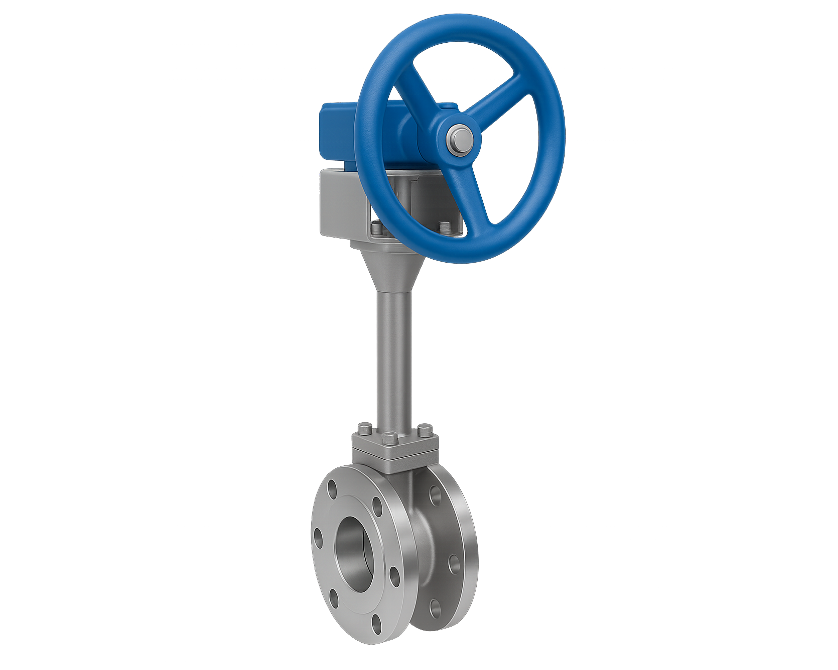

Cryogenic triple-eccentric butterfly valve with flanged connections for low-temperature service. Confirm the pressure class, minimum design temperature, sealing system and operating arrangement for the application.
Applications: Cryogenic applications
For technical documentation or assistance with your selection, contact Nordic Valves.
Low-temperature media, stem extensions and sealing. Selection starts with the conditions inside your line.
Explore application guidanceReview disc and seat materials, pipe clearance and the end connection. Specify manual or actuated operation and any position-feedback requirements.
Specify the medium, minimum temperature and operating pressure. Include stem-extension needs, insulation clearance and any oxygen-cleaning requirements in your enquiry.
Include the required installation drawing, material documentation and testing requirements. Confirm the final configuration and its operating limits with your enquiry.
Include the operating conditions in your enquiry. Add your medium, pressure, temperature and documentation requirements alongside the selected options.
